Product Overview

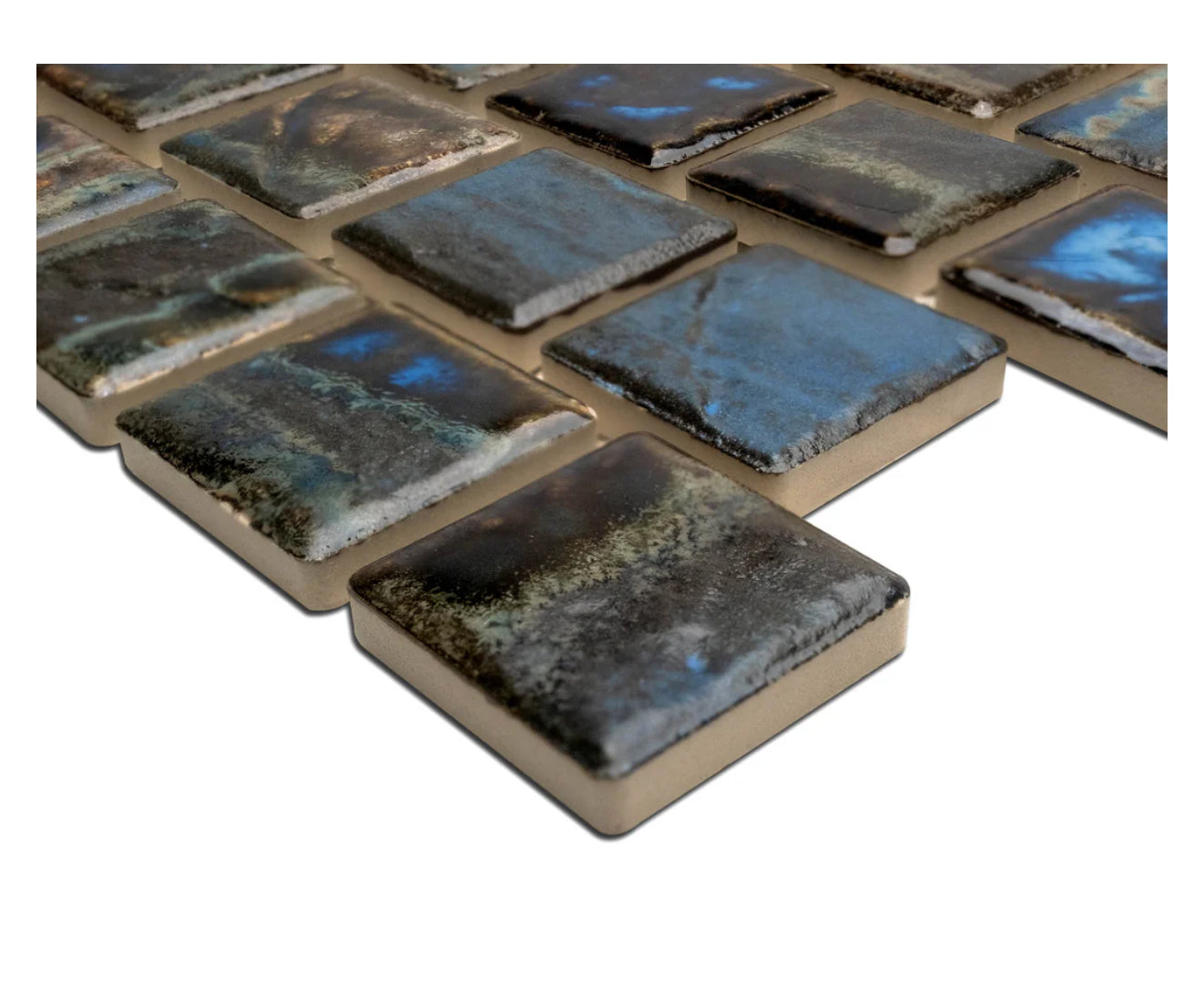

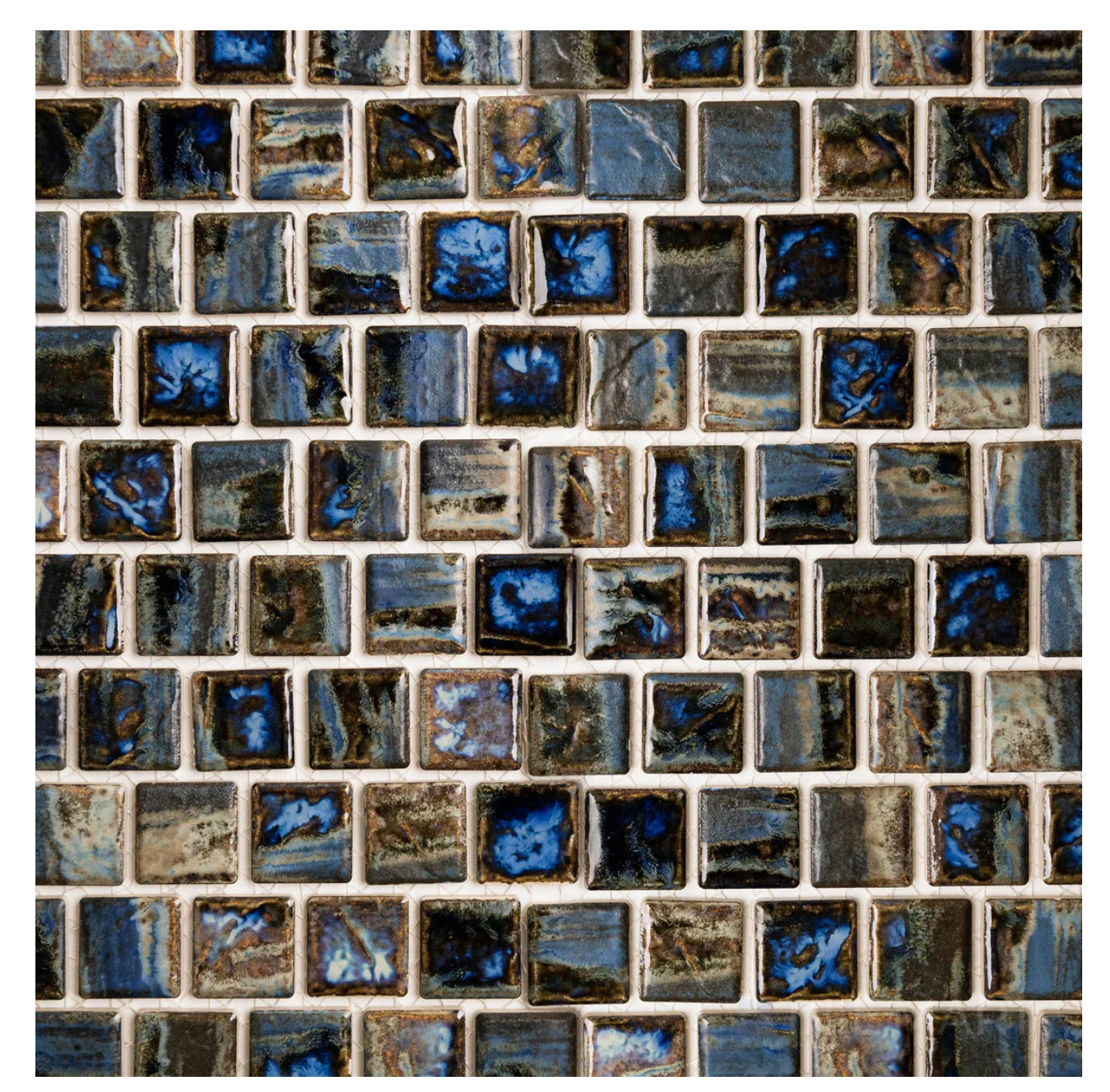

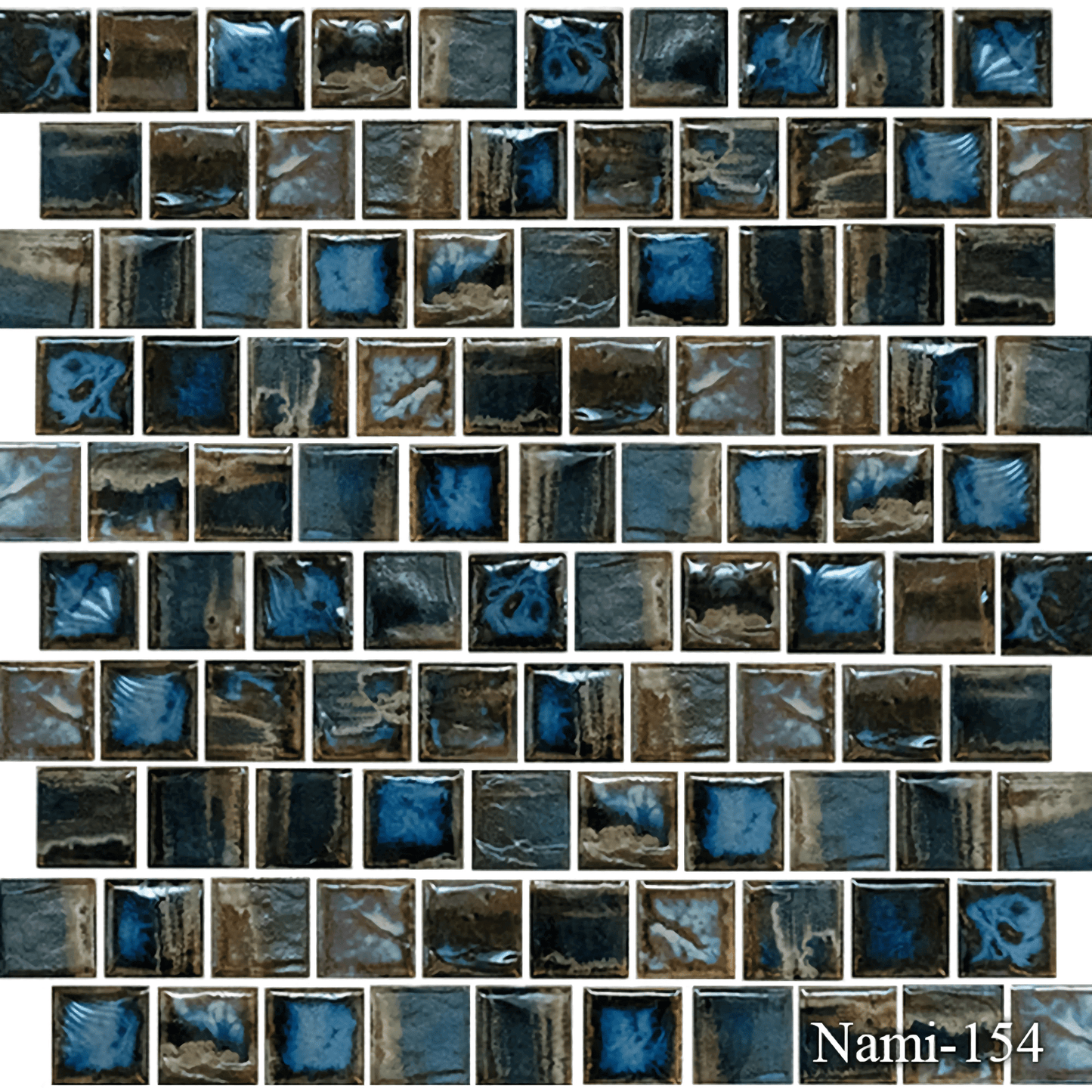

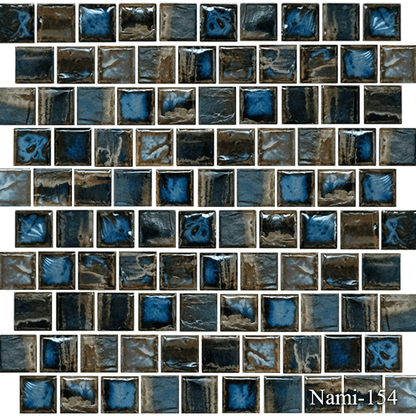

1" x 1" Shoreline Fujiwa Nami 100 Series Pool Tile is an aquatic-grade ceramic mosaic engineered to bring fluid motion, shimmering light reflection, and classic Japanese-inspired texture to swimming pool perimeters, spas, and water features. Featuring small 1" x 1" chips with a wave-like (nami) textured surface glaze, this series creates dynamic water refraction and sparkling color depth across submerged surfaces.
Mounted on flexible mesh backing sheets (~12" x 12"), the small 1x1 mosaic format easily conforms to complex curves, radiused spa benches, steps, and rolled pool edges. High-fired for ultimate chemical, stain, and frost resistance, it withstands continuous submersion, salt water systems, and harsh UV exposure without fading or degrading.
Technical Specifications
| Technical Property |
Value / Specification |
Notes / Compliance |
| Manufacturer / Brand |
Fujiwa Tiles |
Premier Aquatic & Outdoor Ceramics |
| Collection / Series |
Shoreline Nami 100 Series |
Textured Wave-Look Aquatic Mosaic |
| Nominal Chip Size |
1" x 1" (2.5 cm x 2.5 cm) |
Small Square Mosaic Chip |
| Sheet Format |
Interlocking Mesh-Backed Sheet (~12" x 12") |
Pre-Assembled Mosaic Sheet |
| Thickness |
Approx. 1/4 in. (6 mm) |
Standard Mosaic Thickness |
| Material Type |
Glazed Vitrified Ceramic/Porcelain Body |
Chemical & Moisture Impervious |
| Surface Finish |
Wave-Textured Glossy Glaze |
High-Refraction Aquatic Glaze |
| Color Profile |
Shoreline Blue / Wave Tones |
Tonal Wave Shift & Depth |
| Edge Detail |
Smooth Pressed Edge |
Designed for Grouted Joint Layout |
| Recommended Applications |
Pool Waterlines, Spa Floors/Benches, Fountains, Step Markers |
Submerged & Exterior Wet Locations |
Recommended Applications
-
Swimming Pool Waterlines: The 1" x 1" mosaic grid forms an easy-to-clean band along pool perimeters that naturally disguises scum lines and mineral buildup.
-
Spas & Radiused Benches: The small chip size and flexible mesh backing wrap effortlessly around contoured spa seating, rounded hot tub perimeters, and spillways.
-
Pool Step Markers & Tanning Ledges: Serves as a textured, high-visibility safety border along submerged step edges, tanning ledges, and entry ramps.
Installation & Handling Guidelines
⚠️ IMPORTANT: POOL & WET-AREA INSTALLATION PROTOCOL
-
Submerged Mortar Selection: Install sheets using a polymer-modified thin-set mortar specifically rated for submerged ceramic mosaic installations and exterior freeze-thaw conditions (ANSI A118.4 or ANSI A118.15).
-
Substrate & Waterproofing: Ensure concrete pool shells, mud beds, or backer boards are fully cured, sloped, and treated with an approved waterproof membrane prior to tile setting.
-
Grout Selection: Use a chemical-resistant, pool-grade cementitious or epoxy grout designed to withstand salt systems, chlorine, and water treatment chemicals.
-
Sheet Bedding: Lightly tap mosaic sheets into the wet mortar bed using a wooden block or beating float to ensure uniform chip height and 100% mortar contact behind the mesh backing.
Care & Maintenance
-
Pool Chemistry Balance: Maintain balanced pool water chemistry (pH, alkalinity, and calcium hardness) to protect grout joints and prevent mineral scaling.
-
Routine Cleaning: Clean waterline scale with non-abrasive pool tile cleaners and soft nylon brushes. Avoid harsh wire brushes that could scratch the glazed surface.
-
Zero Sealing Required: Glazed aquatic ceramic is non-porous and never requires topical sealers or impregnators.
Design Profile
-
Aesthetic Inspiration: Japanese Wave Motif, Resort Spa, Ocean Lagoon, Modern Coastal.
-
Visual Advantage: The Nami wave texture breaks up harsh direct sunlight, giving pool water a sparkling, crystalline appearance with deep blue undertones.
-
Complementary Finishes: Light gray travertine pool coping, smooth white/light blue pebble plaster, and brushed stainless steel water features.
Frequently Asked Questions
Is Fujiwa Shoreline Nami 100 Series tile suitable for saltwater pools?
Yes. High-fired glazed aquatic ceramic is non-porous and highly resistant to salt, chlorine, and pool water treatment chemicals.
Can 1" x 1" mesh-backed sheets be cut to fit narrower waterline bands?
Yes. The mesh backing can easily be cut with a utility knife between tile rows to create 2-inch, 3-inch, or 6-inch trim strips.
Is this mosaic frost-proof for cold, freeze-thaw climates?
Yes. Fujiwa aquatic tiles are frost-resistant when installed using proper exterior-grade mortars, waterproof membranes, and pool-rated grouts per TCNA standards.
