Product Overview

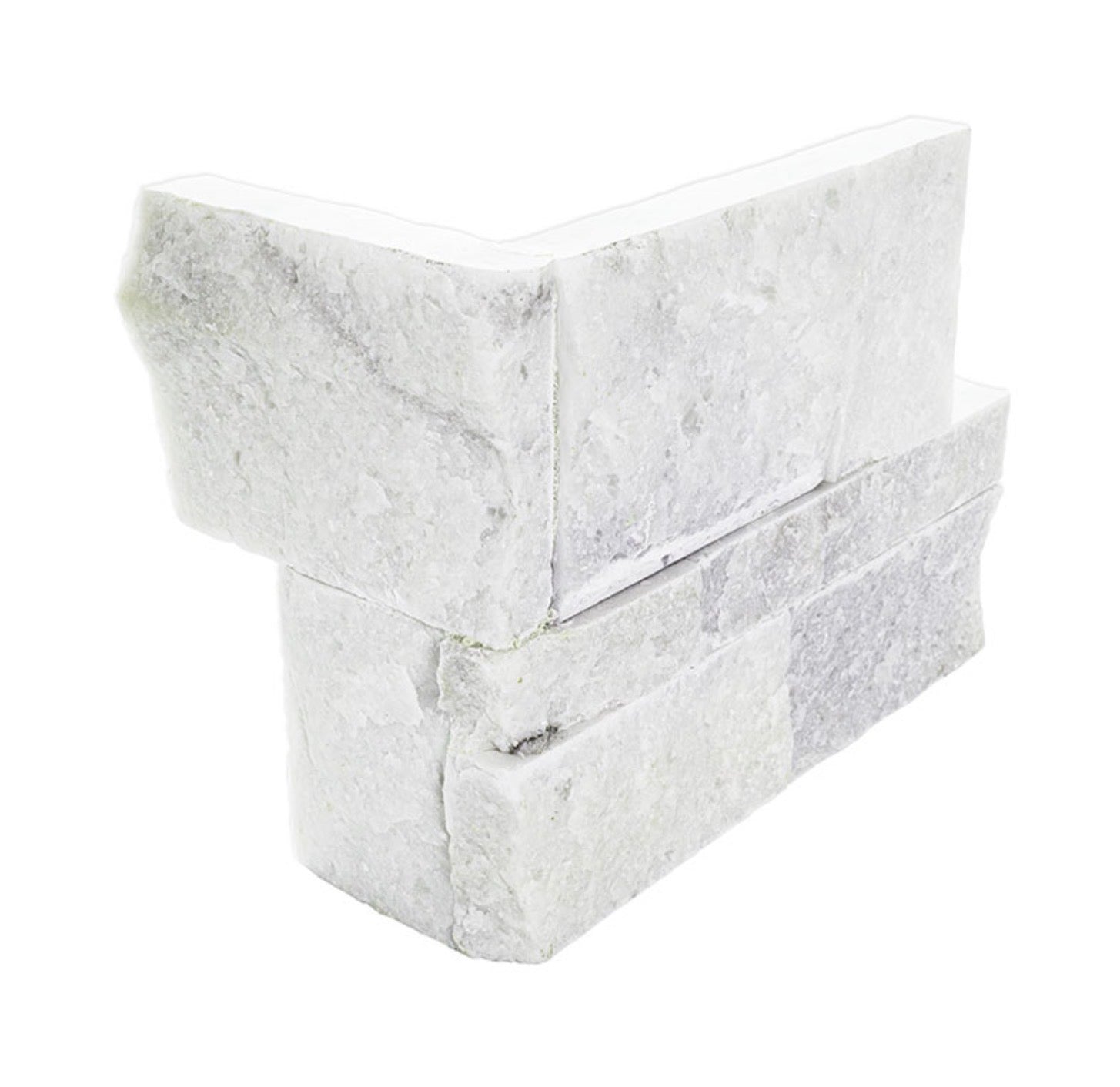

MSI XL RockMount Sierra White 9" x 18" Splitface Marble Ledger Corner Panel provides a clean, continuous stacked-stone transition around columns, fireplaces, exterior façades, outdoor kitchens, and other 90-degree corners. Part of MSI’s XL RockMount® Collection, each preformed corner is assembled from genuine natural marble strips with a rugged splitface texture.

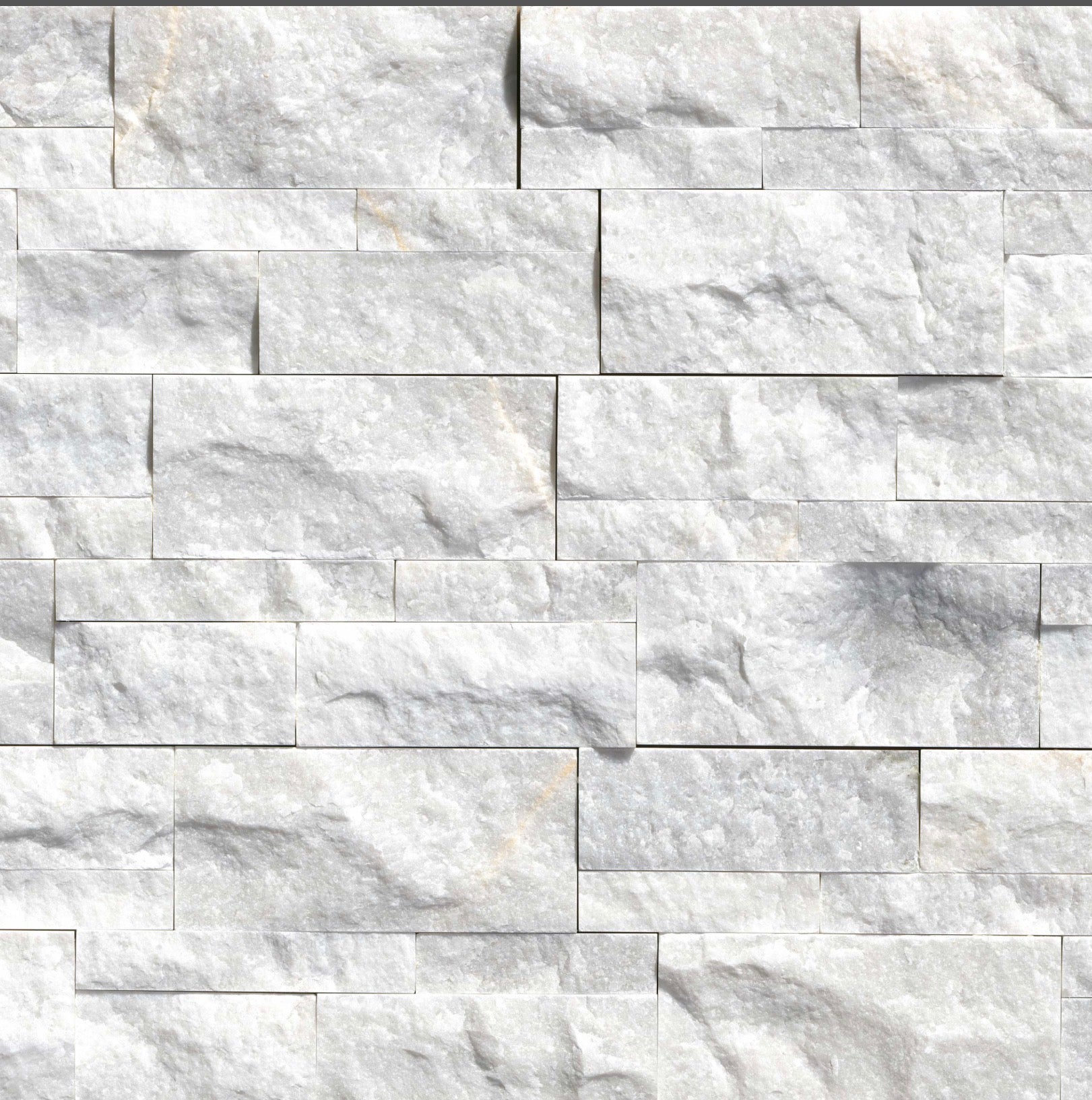

The Sierra White palette features crisp, cool-white marble tones with subtle natural variation. Its dimensional stone surface catches directional light, producing changing highlights and shadows while maintaining a fresh, contemporary appearance.

The L-shaped construction wraps around outside corners without requiring difficult job-site miter cuts. Its 9" height aligns with matching Sierra White XL 9" x 24" field panels, helping the flat panels and corners form a cohesive stacked-stone installation. MSI confirms that Sierra White is splitface marble intended for interior and exterior vertical applications. MSI Surfaces

Technical Specifications

Natural marble varies in shade, veining, mineral markings, texture, thickness, and surface relief. Dimensions and coverage are nominal.

Recommended Applications

• Fireplace Corners: Wraps the outside edges of fireplace surrounds for the appearance of solid, hand-stacked stone construction.

• Columns and Entry Piers: Creates continuous natural-stone coverage around square columns, support structures, and entrance features.

• Exterior Façade Returns: Finishes building corners and wall returns without exposed panel edges or visible job-site miters.

• Outdoor Kitchen Islands: Provides a natural transition around cabinet bases, grill islands, and approved outdoor kitchen structures.

• Living-Room Feature Walls: Finishes projecting walls, chimney breasts, and architectural returns within stacked-stone installations.

• Retaining-Wall Corners: Creates coordinated outside corners on properly designed and waterproofed retaining-wall veneers.

• Commercial Architectural Features: Suitable for appropriate hotel, restaurant, retail, office, and reception-area columns and wall returns.

Installation and Handling Guidelines

Important: Install Corner Panels Before Flat Field Panels

• Begin at the Corner: Establish the corner units first, confirming that they are level, plumb, and correctly aligned. Install the matching 9" x 24" flat panels outward from each corner.

• Alternate the Returns: Reverse the corner orientation on alternating rows so the long and short returns switch sides. This staggers joints and prevents a continuous vertical seam.

• Confirm Structural Capacity: The wall assembly must support the combined weight of the marble corners, field panels, mortar, and substrate.

• Use a Suitable Substrate: Install over properly prepared concrete, masonry, mortar beds, or cementitious backer board as appropriate for the application.

• Prepare a Plumb Corner: The underlying 90-degree corner must be structurally sound, straight, and plumb for both returns to fit correctly.

• Dry-Lay Before Setting: Arrange the corner pieces with adjacent field panels to confirm joint alignment, shade distribution, and return orientation.

• Use White Natural-Stone Mortar: Select a premium white large-and-heavy-tile mortar approved for marble, vertical installation, and the intended substrate.

• Back-Butter the Corners: Apply mortar to both returns of the L-shaped piece as necessary to achieve secure, complete contact.

• Maintain Tight Joints: Fit adjoining panels closely together to preserve the intended grout-free stacked-stone appearance.

• Blend Multiple Cases: Mix pieces from several cases belonging to the same production lot to distribute natural white tones and textural variation.

• Provide Movement Joints: Include movement accommodation according to applicable building and tile-industry standards. Never cover structural movement joints.

• Waterproof Exterior and Wet Areas: Install the required drainage plane, flashing, waterproofing, and moisture-management system behind the stone.

• Protect the Top Surface: Exterior columns and walls require properly sloped caps or flashing to prevent water from entering behind the veneer.

• Follow Fireplace Clearances: Suitable for fireplace-surround corners but not automatically approved inside the firebox. Follow the fireplace manufacturer’s requirements.

• Cut Only with Wet Methods: Use a wet saw and appropriate respiratory protection. Do not dry-cut, grind, or polish materials that can release respirable crystalline-silica dust.

Care and Maintenance

• Remove loose dust with a soft brush, microfiber duster, or vacuum attachment.

• Clean with warm water and a neutral-pH cleaner formulated for natural marble.

• Avoid vinegar, lemon, acidic cleaners, bleach, abrasive chemicals, and wire brushes.

• Do not direct high-pressure washing equipment at close range toward the marble or panel joints.

• Apply a penetrating natural-stone sealer when appropriate for the environment and desired stain protection.

• Test the sealer on spare material first to confirm that it does not alter the marble’s cool-white color.

• Inspect exterior corners periodically for loose pieces, open joints, failed sealant, or possible water entry.

Design Profile

• Style: Modern organic, contemporary coastal, Scandinavian, Alpine luxury, and minimalist.

• Visual Character: Crisp cool-white marble strips with naturally varied splitface texture and dimensional relief.

• Corner Advantage: The preformed L-shape eliminates exposed panel ends and helps the installation resemble full-depth stone masonry.

• Format Advantage: The 9" height aligns with Sierra White XL field panels for a larger and more architectural appearance.

• Lighting Advantage: Directional wall lighting emphasizes the corner profile and produces soft highlights across the textured marble.

• Coordinating Materials: White oak, walnut, concrete, blackened steel, glass, and cool-gray porcelain.

• Coordinating Fixtures: Matte black, brushed nickel, polished chrome, and champagne bronze.

• Recommended Wall Colors: Warm white, pale gray, greige, charcoal, and muted natural tones.

Frequently Asked Questions

Is MSI Sierra White XL made from marble or quartzite?

Sierra White XL is made from natural marble. Product descriptions identifying it as quartzite are incorrect.

What are the actual dimensions of the corner panel?

The corner is approximately 9" high with a 12" long return and a 6" short return. The two returns total 18", which is why it is marketed as a 9" x 18" corner.

Which flat panel matches this corner?

It coordinates with the MSI Sierra White XL 9" x 24" field panel, item number LPNLMSIEWHI924.

How much vertical height does one corner cover?

Each corner is 9" high and therefore covers approximately 0.75 linear vertical foot.

How many pieces are required for an eight-foot corner?

Divide the height by 0.75:
8 ÷ 0.75 = 10.67.

Therefore, an eight-foot corner requires at least 11 pieces before adding material for waste or future repairs.

How much does one case cover?

One case contains four corner panels. It covers approximately 4.50 square feet of stone surface or three linear vertical feet of corner height.

Why should the corner orientation alternate between rows?

Alternating the long and short returns staggers the joints on both wall faces, preventing a continuous seam from running vertically along the installation.

Should the corner panels or flat panels be installed first?

Install the corner panels first. Once the corner is level and plumb, work outward with the matching 9" x 24" field panels.

Does Sierra White corner require grout?

The pieces are intended for tight-joint stacked-stone installation. Face grouting is generally not required, but mortar is necessary to bond the panels securely.

Can the corner panels be installed outdoors?

Yes. MSI lists Sierra White for exterior vertical applications. Proper exterior mortar, flashing, drainage, waterproofing, movement joints, and climate-appropriate installation are required.

Can they be installed around a fireplace?

Yes. They are suitable for properly constructed fireplace-surround corners but should not be installed inside the firebox unless the complete assembly is specifically approved.

Does Sierra White marble require sealing?

A penetrating sealer is recommended where the stone may encounter moisture, grease, staining, or exterior exposure. Always test the sealer first.

Can the corner panels be used as flooring?

No. MSI classifies Sierra White XL panels and corners as vertical wall products, not flooring.

How much extra material should be ordered?

Order at least 10% additional material for cuts, breakage, shade blending, and future repairs. Complex columns or projects with numerous corners may require approximately 15% overage.
