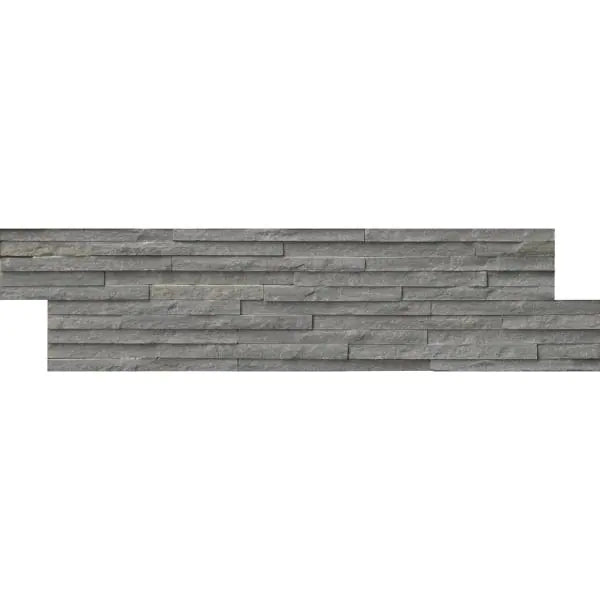

Rockmount Series: Charcoal Pencil 6" x 24" Splitface Slate Ledger Panel by MSI

The "Industrial Linear" Linear Architectural Ledger While chunkier splitface stones project massive rustic weight, the MSI Charcoal Pencil Ledger Panel relies on an ultra-streamlined, micro-stacked profile to establish a sharp modern edge. It represents the perfect harmony of "Industrial Minimalist," "Urban Loft Modern," and "Suave Transitional"interior and exterior aesthetics. By precision-stacking incredibly thin, pencil-cut strips of authentic slate, this profile maximizes horizontal lines. It acts as an elite structural cladding choice for dramatic media walls, contemporary floor-to-ceiling fireplaces, and sleek exterior architectural features.

PRODUCT DESCRIPTION Bring a commanding, architectural texture into your living space with the dark, moody sophistication of the Charcoal Pencil 6" x 24" Slate Ledger Panel. Expertly sourced and arranged by M S International (MSI) from premium runs of high-density metamorphic slate, this premium wall veneer completely updates the dry-stacked stone look. The color palette features a dense, cool-spectrum canvas: a dominant background of deep carbon gray, rich charcoal, and dark slate blue, highlighted by natural metallic sheen variations, faint iron-grey shifting, and subtle tone-on-tone highlights.

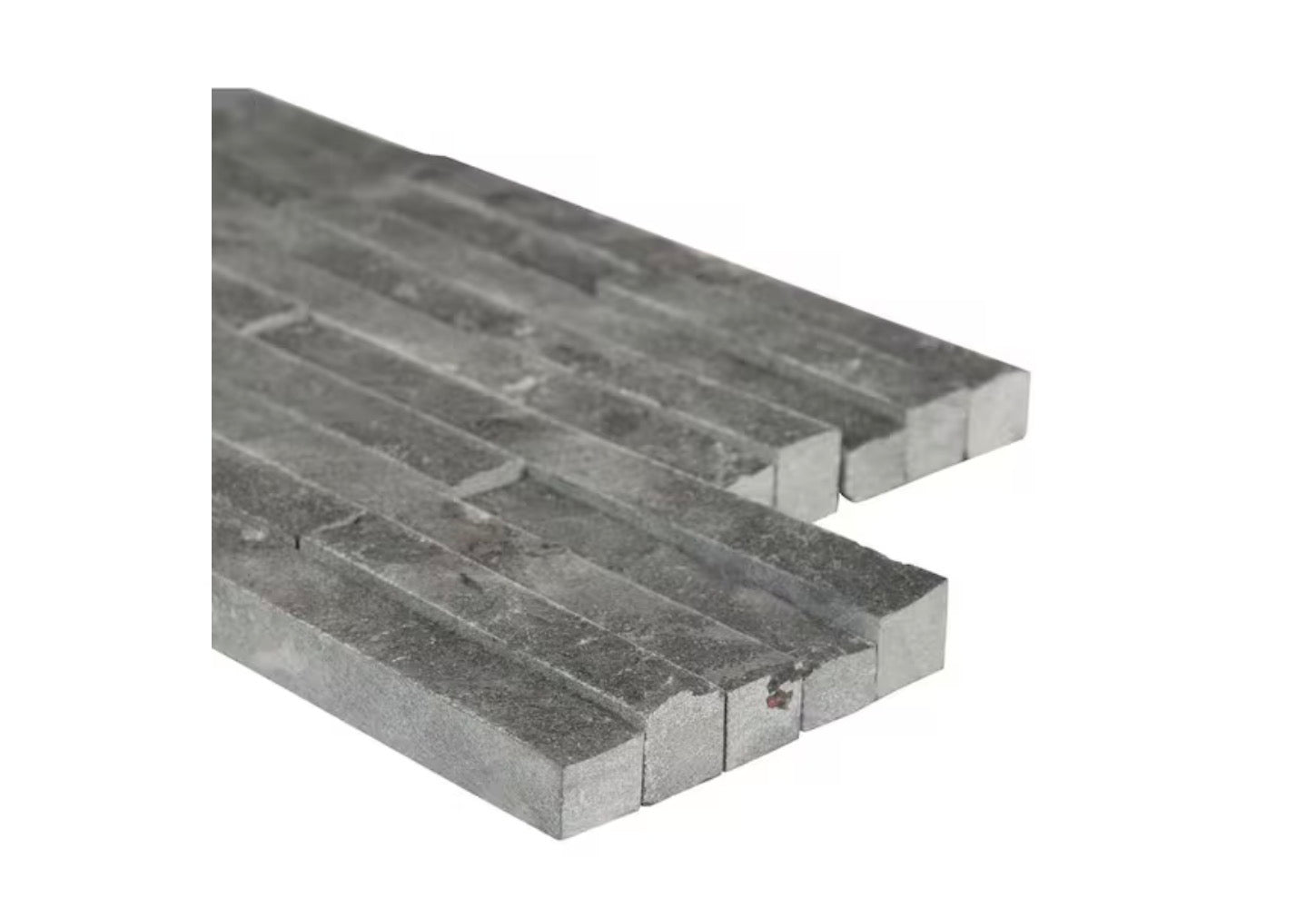

The design is engineered to project clean horizontal movement across grand accent planes. Unlike standard chunkier ledger sheets, the Charcoal Pencil profile utilizes tightly packed micro-strips with an authentic Splitface finish—meaning the natural slate is mechanically fractured along its fine fault lines to expose a rugged, unpolished cleft. These thin fragments are hand-sorted and permanently glued together into stepped, interlocking panels with variable depths averaging 0.75 inches in relief. This dimensional layout creates a highly textured surface that catches ambient room light, transforming a flat wall into a rich canvas of deep, architectural shadows at night.

KEY FEATURES

• Ultra-Thin Pencil Configuration: Slim, micro-stacked slate strips create an emphasizing horizontal texture that elongates short walls and modernizes interiors.

• Moody Carbon Charcoal Palette: A deep, dramatic dark gray colorway that coordinates perfectly with modern matte black metals, concrete accents, and bright white paint schemes.

• High-Relief Splitface Clefts: Real fractured slate surfaces deliver bold 3D depth and organic light scattering that concrete-poured faux stone veneers cannot replicate.

• Grout-Free Interlocking Matrix: Stepped, Z-shaped interlocking boundaries allow adjacent panels to nest tightly against one another, completely hiding raw grid lines.

• Premium All-Weather Slate Core: Naturally frost-proof with exceptional density and low water absorption, making it entirely capable of weathering intense winter freeze-thaw cycles and hot exterior exposures.

SPECIFICATIONS

INSTALLATION REQUIREMENTS

⚠️ CRITICAL: PREMIUM DARK MORTAR SELECTION: Unlike light marble or limestone, this is a deep carbon-colored natural slate. To ensure a flawless professional finish, installers should use a premium, polymer-modified Gray Large and Heavy Tile (LHT) Mortar meeting ANSI A118.15 standards. If a bright white thin-set is used carelessly, any minor bleed-through behind the tight pencil-thin joints will show bright white specs, ruining the deep monochromatic visual of your dark charcoal feature wall.

Professional Recommendations:

• Substrate Structural Dead-Load: Due to the heavy weight of these natural slate panels (~11 lbs per square foot), they cannot be installed directly over standard interior drywall or wallpaper. They must be anchored over a rigid cement backer board (firmly screwed to framing studs at 12-inch intervals) or applied directly over clean, structurally sound masonry or concrete block foundations.

• The Multi-Box Shuffle: Natural slate inherently carries subtle tonal variations from lot to lot. Before applying any adhesive, unpack at least 3 to 4 boxes and lay the panels out on the floor. Mix panels with different shading profiles evenly to ensure a completely balanced visual distribution across your wall surface.

• Wet Saw Cutting Mandate: Natural slate contains crystalline silica. Installers must utilize a professional wet tile saw fitted with a continuous-rim diamond blade for all alterations. Never dry-cut these panels, as inhaling airborne silica dust causes severe, permanent respiratory damage.

FREQUENTLY ASKED QUESTIONS

Do these natural charcoal slate panels require a sealer? For interior dry feature walls (like a living room fireplace), sealing is optional but recommended to keep airborne dust from clinging to the rough clefts. For outdoor facades, barbecue surrounds, or surrounding an open fireplace hearth, applying a premium, non-yellowing penetrating/impregnating sealer is highly mandatory. This invisible layer blocks rainwater absorption and shields the dark slate from water tracking or efflorescence (white mineral salts bleeding out of the mortar).

Can this splitface stone look be installed inside a wet shower enclosure? No, this is highly discouraged. While it handles exterior storm rain perfectly due to open-air evaporation, the dense, un-grouted crevices of a dry-stack ledger panel will trap falling body oils, soap scum, and hard water minerals in an indoor enclosed shower. Over time, this leads to mold growth that is nearly impossible to scrub out. Keep this tile limited to dry accent walls, fireplaces, and outdoor facades.

PRO DESIGN TIPS

• The Pre-Formed Corner Solution: If wrapping an outward 90-degree corner (such as an exterior support pillar or a three-sided fireplace), pair these flat panels with matching Charcoal Pencil Corner L-Pieces (6" x 12" x 6"). Flip-flop the corner blocks 180 degrees on alternating rows (alternating the long and short legs) to completely hide the vertical corner seam and preserve a solid-masonry look.

• Grazing LED Lighting Schemes: Position neutral-to-cool spectrum (4000K) overhead LED spotlights or a hidden valance strip directly above the slate feature wall. Setting the lights to graze down the wall catches the tiny ridges of the thin pencil clefts, projecting intense, sharp shadows that maximize the 3D depth of the dark stone at night.

• High-Contrast Modernism: Lean into a sleek, industrial look by pairing this carbon slate texture with floating shelves made of natural white oak or reclaimed walnut, and accent the space with light gray concrete floors. The warm wood tones soften the dark gray stone, creating an ultra-premium designer balance.
