MSI Coal Canyon 6" x 24" Splitface Quartzite Ledger Panel

Product Overview

MSI Coal Canyon 6" x 24" Splitface Ledger Panel Wall Tile delivers bold architectural texture through genuine charcoal-gray quartzite. Part of MSI’s RockMount® Stacked Stone Collection, each panel consists of narrow natural-stone strips assembled into a dimensional stacked-stone format.

Coal Canyon combines rich charcoal, iron gray, graphite, and near-black tones with subtle natural variation. Its rugged splitface surface creates dramatic highlights and shadows under directional lighting, while the interlocking panel construction minimizes visible seams and eliminates conventional grout joints.

Designed for interior and exterior vertical applications, Coal Canyon is an expressive choice for fireplace surrounds, feature walls, exterior cladding, outdoor kitchens, columns, and architectural accents.

Recommended Applications

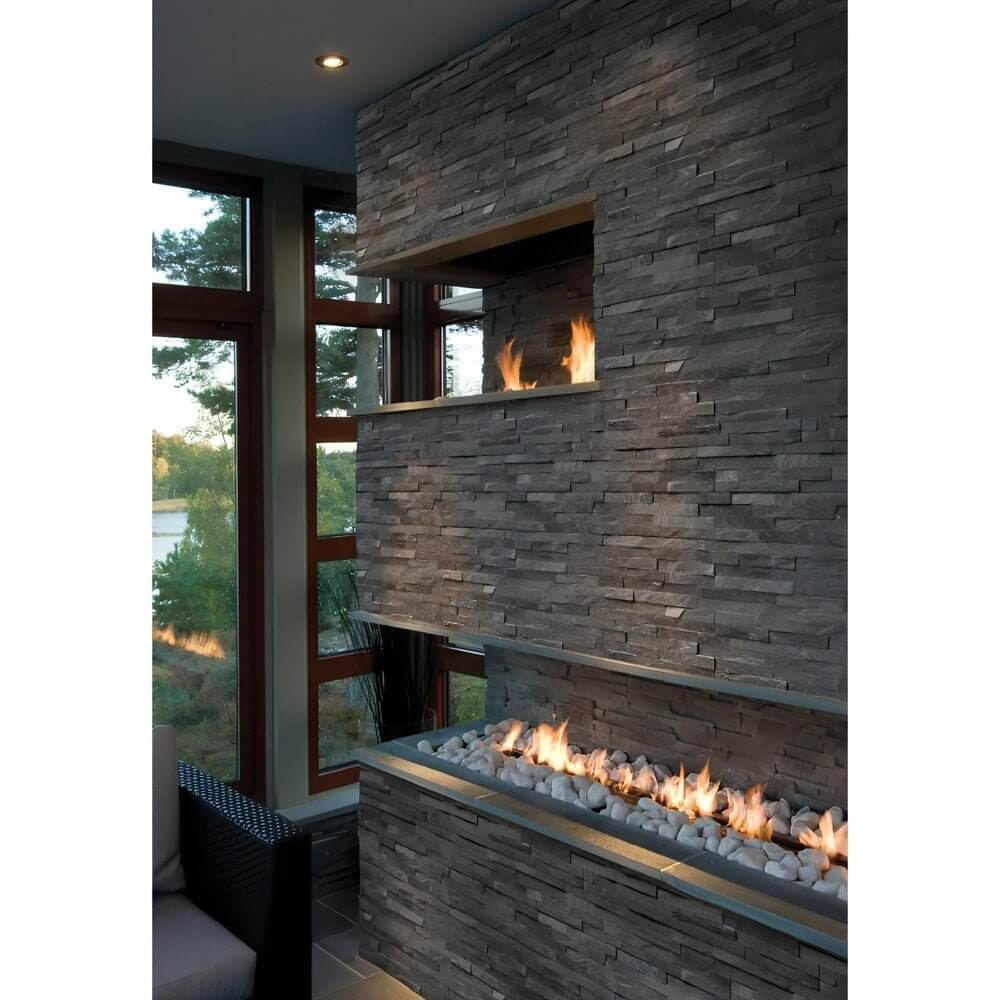

• Fireplace Surrounds: Creates a dramatic floor-to-ceiling focal point when installed over an approved, heat-resistant substrate and within fireplace-clearance requirements.

• Interior Feature Walls: Adds depth and natural texture to living rooms, foyers, offices, hospitality spaces, and commercial reception areas.

• Outdoor Kitchens and Barbecue Islands: Provides a durable dark-stone finish around exterior cooking and entertainment areas.

• Exterior Cladding: Suitable for façades, entry walls, columns, pillars, and architectural features when installed using an approved exterior veneer system.

• Kitchen and Bar Backsplashes: Introduces rugged dimensional texture behind bars, beverage stations, and appropriate backsplash areas.

• Planter and Landscape Walls: Can be used as decorative veneer over structurally sound masonry or concrete walls. It is not itself a structural retaining-wall material.

Design Profile

• Aesthetic Inspiration: Mountain modern, urban industrial, contemporary rustic, dark luxury, and modern lodge.

• Color Character: Charcoal gray, graphite, iron gray, and soft black.

• Visual Advantage: The splitface texture catches light across different depths, creating a dynamic architectural surface.

• Complementary Materials: Natural oak, dark walnut, blackened steel, concrete, leather, and warm plaster.

• Complementary Metals: Matte black, gunmetal, brushed stainless steel, and aged bronze.

• Lighting Recommendation: Directional wall-wash lighting emphasizes the layered texture and creates stronger light-and-shadow definition.

Technical Specifications

MSI confirms Coal Canyon as a charcoal-gray, splitface quartzite ledger panel suitable for interior and exterior wall applications. MSI Surfaces

Installation and Handling Guidelines

⚠️ IMPORTANT: HEAVY NATURAL-STONE WALL INSTALLATION

Ledger panels are significantly heavier and more dimensional than conventional ceramic wall tile. Substrate strength, mortar coverage, waterproofing, and exterior detailing must be evaluated before installation.

• Approved Substrate: Install over clean, flat, structurally sound concrete, masonry, or properly secured cementitious backer board. Do not install directly over painted drywall in heavy, wet, exterior, or high-heat applications.

• Mortar Selection: Use a polymer-modified Large and Heavy Tile mortar meeting ANSI A118.4 or A118.15 and approved for natural quartzite.

• Mortar Coverage: Directionally trowel the mortar and back-butter each panel. Achieve substantially complete coverage, particularly around fireplaces, in wet locations, and on exterior walls.

• Grout-Free Installation: Butt the panels tightly together without conventional grout joints. Remove mortar from the panel faces and joints before it hardens.

• Joint Staggering: Offset panel joints between courses and avoid aligning vertical seams. Test-fit adjoining pieces before applying mortar.

• Corner Treatment: Use matching Coal Canyon corner panels, sold separately, to wrap outside corners without exposed saw-cut edges.

• Interior Cuts: Place cut edges against adjoining walls, ceilings, trim, or corners whenever possible.

• Exterior Installation: Include proper flashing, drainage, waterproofing, movement accommodation, and freeze-thaw-rated setting materials. Tall façades may require engineered or mechanically supported veneer systems.

• Fireplace Installation: Quartzite is natural stone, but the complete fireplace assembly must comply with the fireplace manufacturer’s required clearances and local building codes.

• Cutting Safety: Wet-cut only with a suitable diamond blade. Do not dry-cut or grind because airborne crystalline silica can cause serious respiratory harm.

• Order Allowance: Purchase approximately 10–15% additional material for cuts, breakage, color blending, and future repairs.

Care and Maintenance

• Remove dust from the splitface surface using a soft-bristle brush or vacuum attachment.

• Clean periodically with warm water and a neutral-pH natural-stone cleaner.

• Avoid acidic cleaners, vinegar, bleach, abrasive chemicals, and aggressive wire brushes.

• Do not direct high-pressure power washers closely at the stone or mortar joints.

• A penetrating natural-stone sealer may be applied in moisture-, grease-, or stain-prone locations. Test first because enhancing sealers may darken the quartzite.

• Exterior installations should be inspected periodically for open joints, failed flashing, or moisture intrusion.

Frequently Asked Questions

Is MSI Coal Canyon slate or quartzite?

MSI classifies Coal Canyon as genuine natural quartzite. It should not be described as a slate product.

Does Coal Canyon require grout?

No. RockMount ledger panels are designed for tight, grout-free installation, creating a continuous stacked-stone appearance.

Can Coal Canyon be installed outdoors?

Yes. MSI recommends it for exterior wall applications. Proper waterproofing, flashing, drainage, mortar coverage, and movement joints are essential.

Can it be installed around a fireplace?

Yes, when installed over an approved heat-resistant substrate and in compliance with the fireplace manufacturer’s clearance requirements and local codes.

Can Coal Canyon be used on floors?

No. This dimensional splitface ledger panel is intended for vertical wall and veneer applications rather than walking surfaces.

Are matching corner pieces available?

Yes. Coordinating Coal Canyon L-shaped corner panels are available separately for outside corners, columns, and returns.

Should quartzite ledger panels be sealed?

Sealing is optional in many dry wall installations but recommended in grease-, moisture-, or stain-prone areas. Test the sealer first to evaluate any color change.
