Product Overview

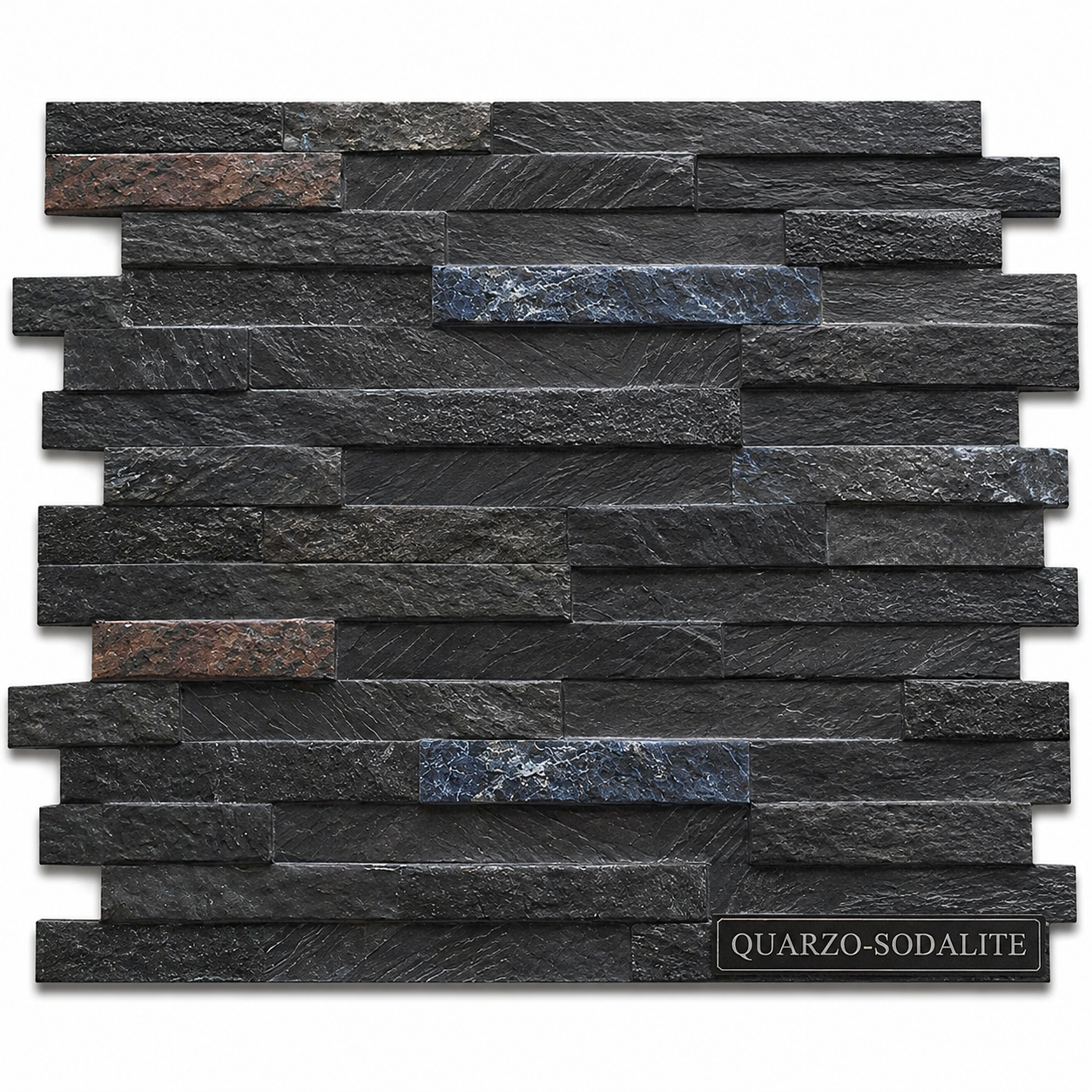

Fujiwa Quarzo Series: 6-1/4" x 16" Sodalite Porcelain Stacked Ledger Tile is a high-performance architectural porcelain wall tile designed to replicate the rich, dimensional texture of natural stacked stone ledger panels. Inspired by the rare mineral sodalite, the Sodalite colorway features a captivating palette of deep royal blue, denim, charcoal slate, and warm rust-gold veining across a multi-dimensional, split-face profile.

Manufactured by Fujiwa Tiles, a leader in exterior and aquatic ceramic innovations, this porcelain ledger panel eliminates the heavy weight, porosity, and maintenance demands of real natural stone ledger panels. Engineered for both indoor feature walls and harsh exterior environments, it provides an impervious, frost-proof solution for swimming pool raised walls, outdoor fireplace surrounds, patio feature walls, and interior accent facades.

Technical Specifications

Recommended Applications

• Outdoor Living & Pool Features: Raised pool beam walls, water feature backdrops, outdoor fireplace facades, and barbecue island cladding.

• Exterior Architecture: Building entryways, exterior accent walls, retaining wall cladding, and porch pillars.

• Interior Feature Walls: Primary bathroom feature walls, fireplace surrounds, wine cellar backdrops, and commercial reception walls.

Installation & Handling Guidelines

⚠️ CRITICAL WARNING: HEAVY WALL TILE & EXTERIOR MORTAR PROTOCOL

• Thinset Mortar Selection: Due to the heavy 3D profile and exterior/submerged exposure, install using a high-performance, polymer-modified thinset specified for large/heavy wall tile. For exterior and pool environments, use an ANSI A118.15-compliant latex-polymer modified mortar (such as MAPEI® Ultraflex LFT or LATICRETE® 254 Platinum).

• 100% Mortar Coverage: Back-butter every ledger panel and flat-trowel the wall substrate. Achieving full thinset contact behind 3D ledger panels is critical to prevent water entrapment behind panels in freeze-thaw climates.

• Tight-Joint Interlocking: Interlock the Z-shaped panels tightly together. Standard grout is generally not required between interlocking stone faces, but open perimeter joints or movement gaps should be sealed with color-matched exterior silicone sealant.

Professional Recommendations

• Movement Joints: Install expansion joints at structural transitions, corners, and long wall spans per TCNA EJ171 guidelines.

• Substrate Preparation: Ensure exterior concrete or cement backer board substrates are structurally sound, clean, and capable of supporting heavy wall tile loads.

Care & Maintenance

• Routine Cleaning: Clean easily with water, a soft brush, or a low-pressure power washer on exterior installations.

• Stain & UV Resistance: Impervious porcelain body resists algae growth, mineral staining, and UV color fading.

• Zero Sealing Required: Unlike natural stone ledger panels that require regular sealers to prevent moisture staining and spalling, non-porous porcelain never requires sealers or topical coatings.

Design Profile

• Aesthetic Inspiration: Raw Sodalite Gemstone, Rustic Split-Face Quartzite, and Coastal Mountain Architecture.

• Texture & Dimension: Multi-depth staggered ledger relief that creates dynamic light and shadow interplay under sunlight or focal lighting.

• Complementary Finishes: Pairs exceptionally well with natural wood accents, dark slate pavers, smooth white plaster, and brushed bronze fixtures.

Frequently Asked Questions

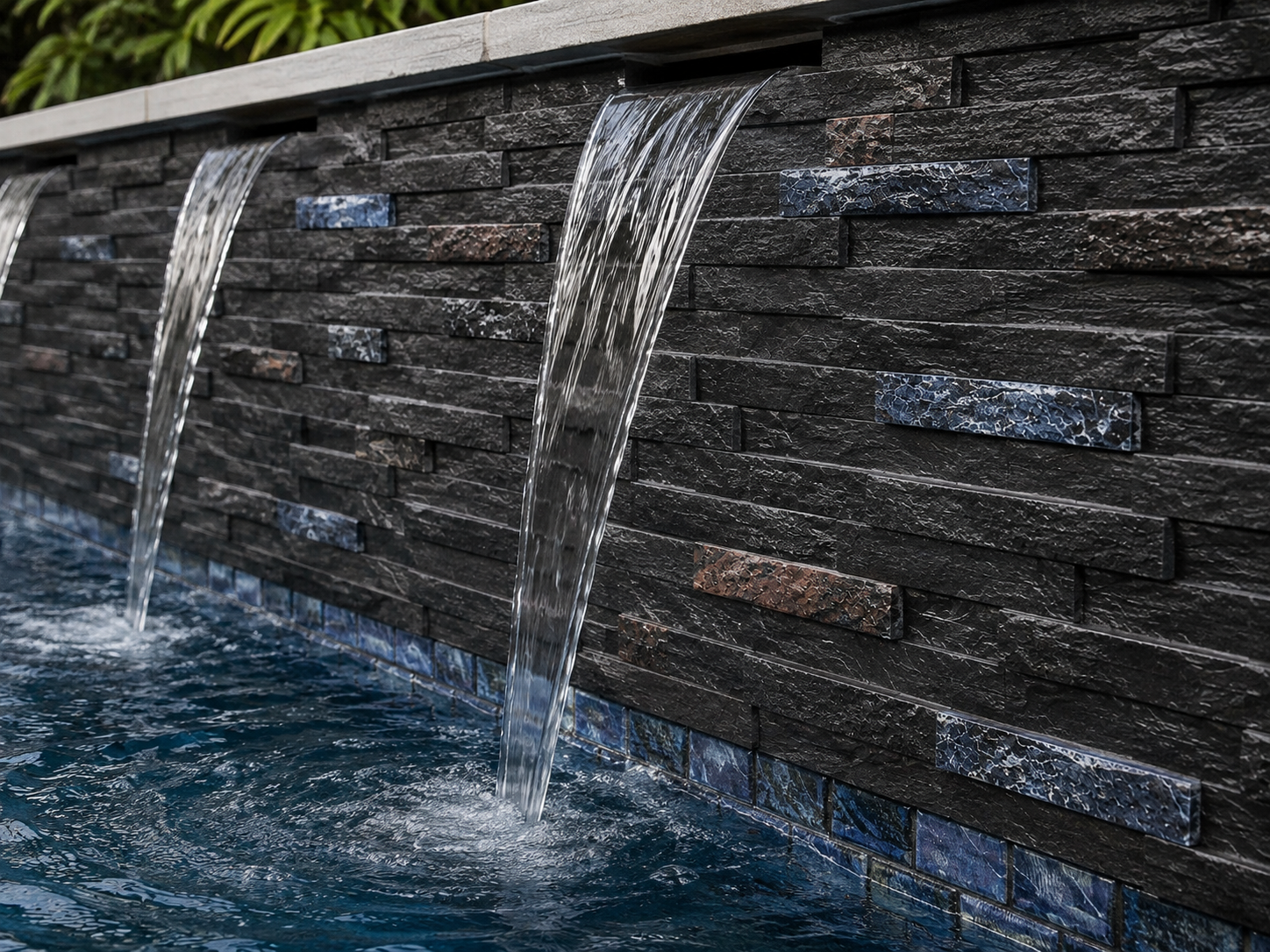

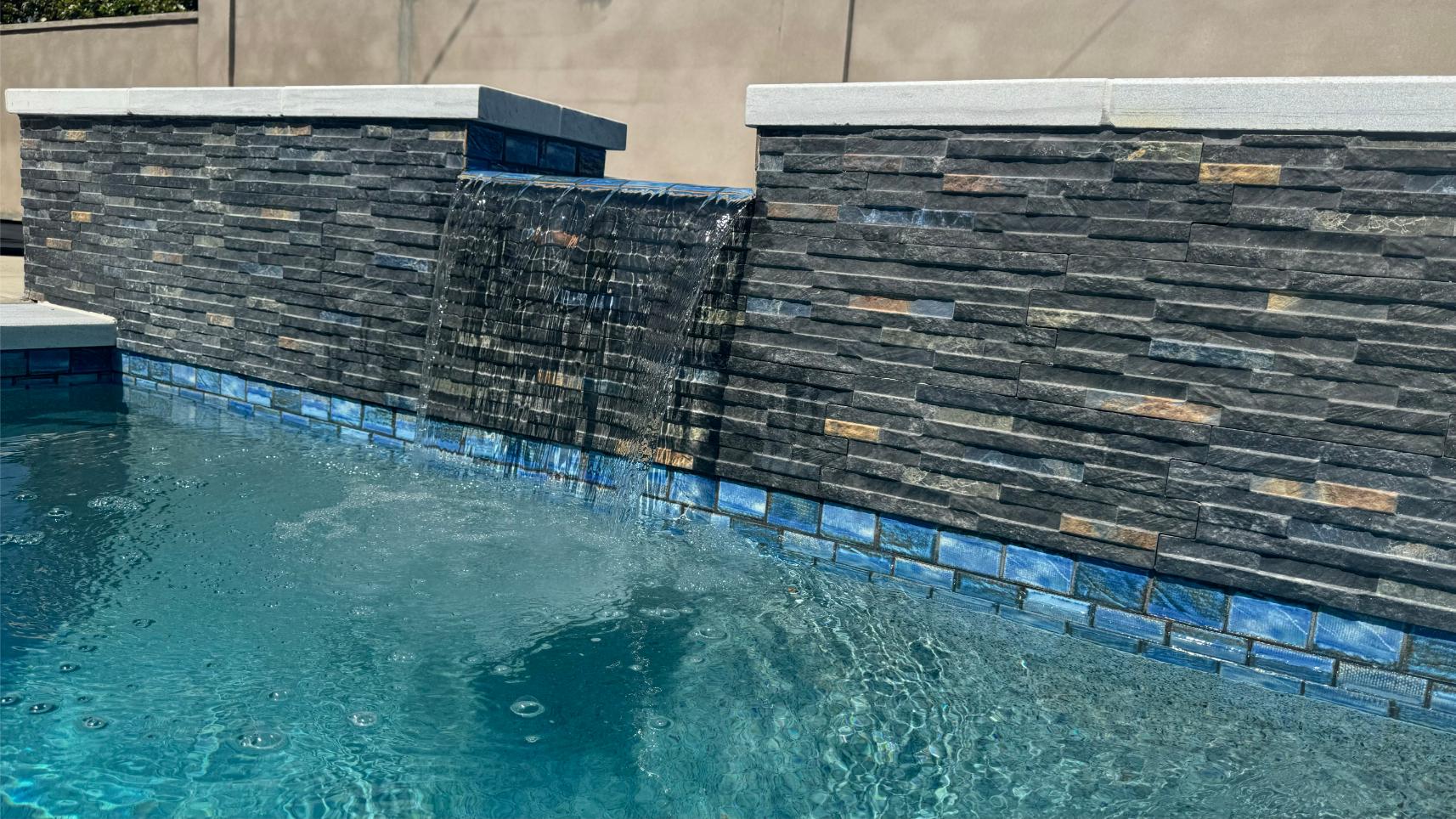

Can Fujiwa Quarzo Sodalite Porcelain Ledger be installed around pool waterfalls?

Yes! Unlike natural slate or quartzite ledger stone that can flake, disintegrate, or effloresce when exposed to pool water and chemicals, Fujiwa vitrified porcelain is completely impervious (< 0.5% water absorption) and chemical-resistant.

Do I need to seal porcelain ledger panels?

No. Porcelain ledger panels are non-porous and do not absorb moisture, oils, or dirt. They require no sealer over their lifespan, making them far easier to clean and maintain than natural stone split-face panels.

How are the panels installed to hide seams?

The panels feature a precision-cut interlocking "Z" layout. When set side-by-side, the staggered ends interlock seamlessly, hiding vertical seams and creating the appearance of a hand-stacked stone wall.

Can this ledger tile withstand freezing winter conditions?

A: Absolutely. Fujiwa Quarzo ledger tiles are tested and certified frost-proof (ASTM C1026). They will not crack or spall in severe freeze-thaw winter climates when set with an ANSI A118.15 mortar.
