🏛️ THE DESIGN IDENTITY
-
The Archetype: The Royal Ocean Grid Field for classic pool waterlines, perimeter spillways, raised spa feature walls, and vibrant aquatic backsplashes.
-
The Contrast: Rejecting flat, dull blue ceramic tiles, RIO-901 Persian Blue offers a rich, light-reflecting multi-tonal glaze. It blends deep Persian blue, rich cobalt, sapphire, and subtle midnight navy undertones that catch and magnify sunlight beneath moving pool water.
-
Design Aesthetics: The premier surface choice for Classic Resort-Style Swimming Pools, High-Contrast Spa Feature Walls, Mediterranean Backyard Sanctuaries, and Luminous Waterfalls.
-
The Mineral Field: Features a high-fired Japanese porcelain body—blending rich Persian blue, electric cobalt, dark navy accents, and a smooth, light-dispersing protective glaze.
-
The Visual Flow: The pre-assembled mesh sheet features classic small-format square porcelain tiles that create a clean, continuous grid along waterlines, softening pool edges while adding dramatic aquatic depth.
🏷️ PRODUCT TITLE

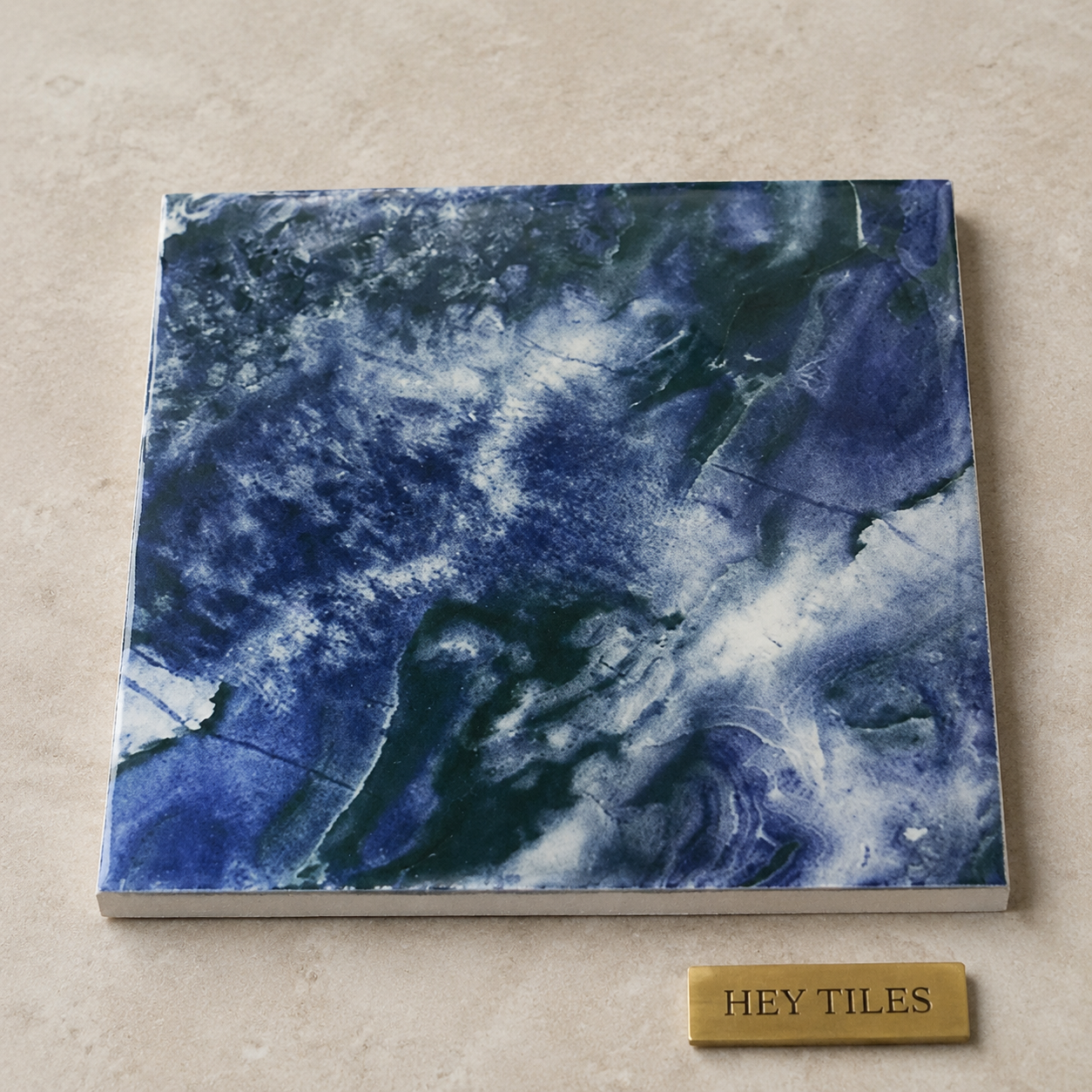

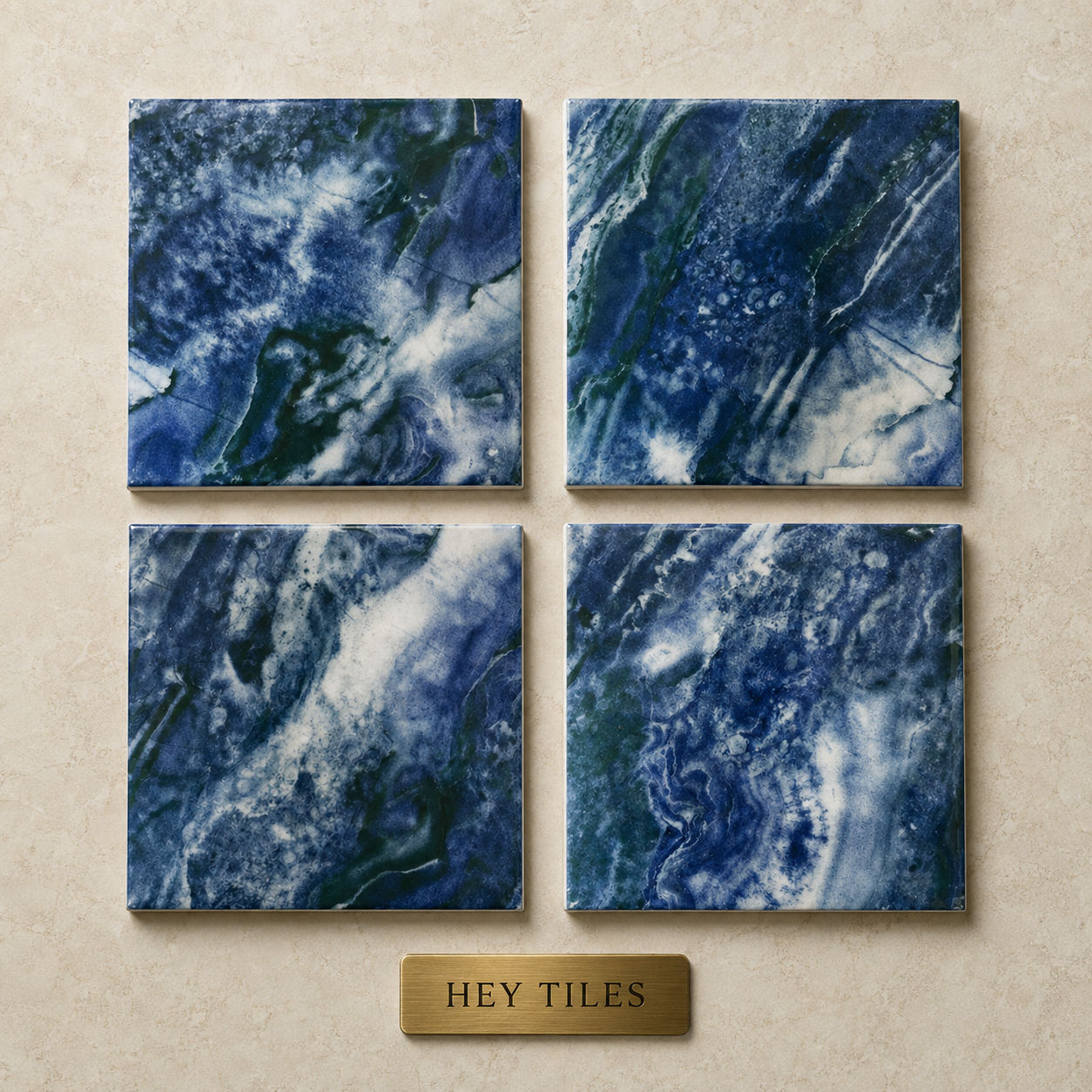

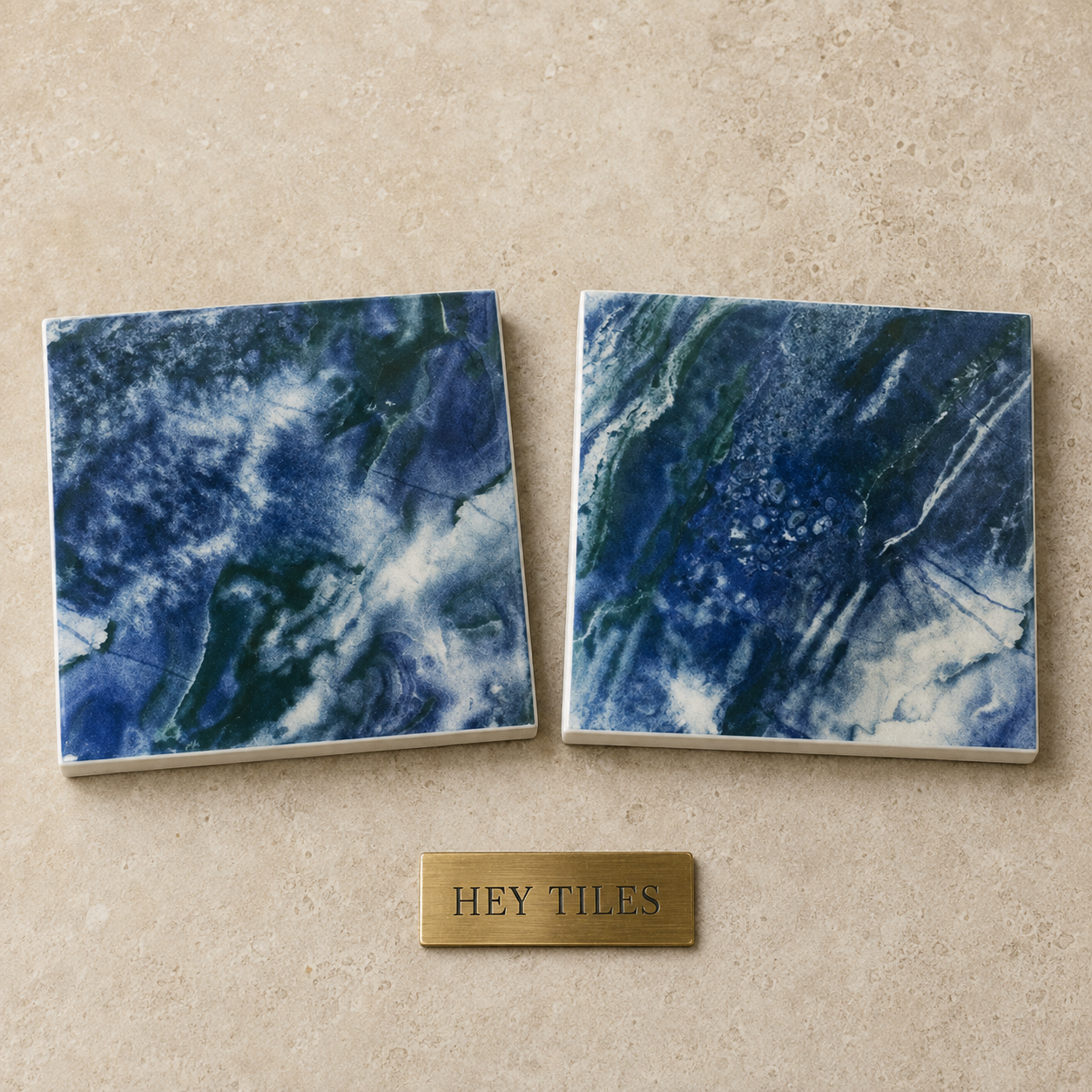

Fujiwa Rio Series: Persian Blue (RIO-901) Glazed Porcelain Pool Tile
📝 PRODUCT DESCRIPTION
Bring rich oceanic depth, vibrant contrast, and crystal-clear light reflections to your pool or spa environment with Fujiwa RIO-901 Persian Blue Porcelain Tile. As part of Fujiwa's designer Rio Series, this tile features a classic mosaic grid coated in a multi-tonal sapphire glaze that catches direct sunlight and underwater LED lighting beautifully.

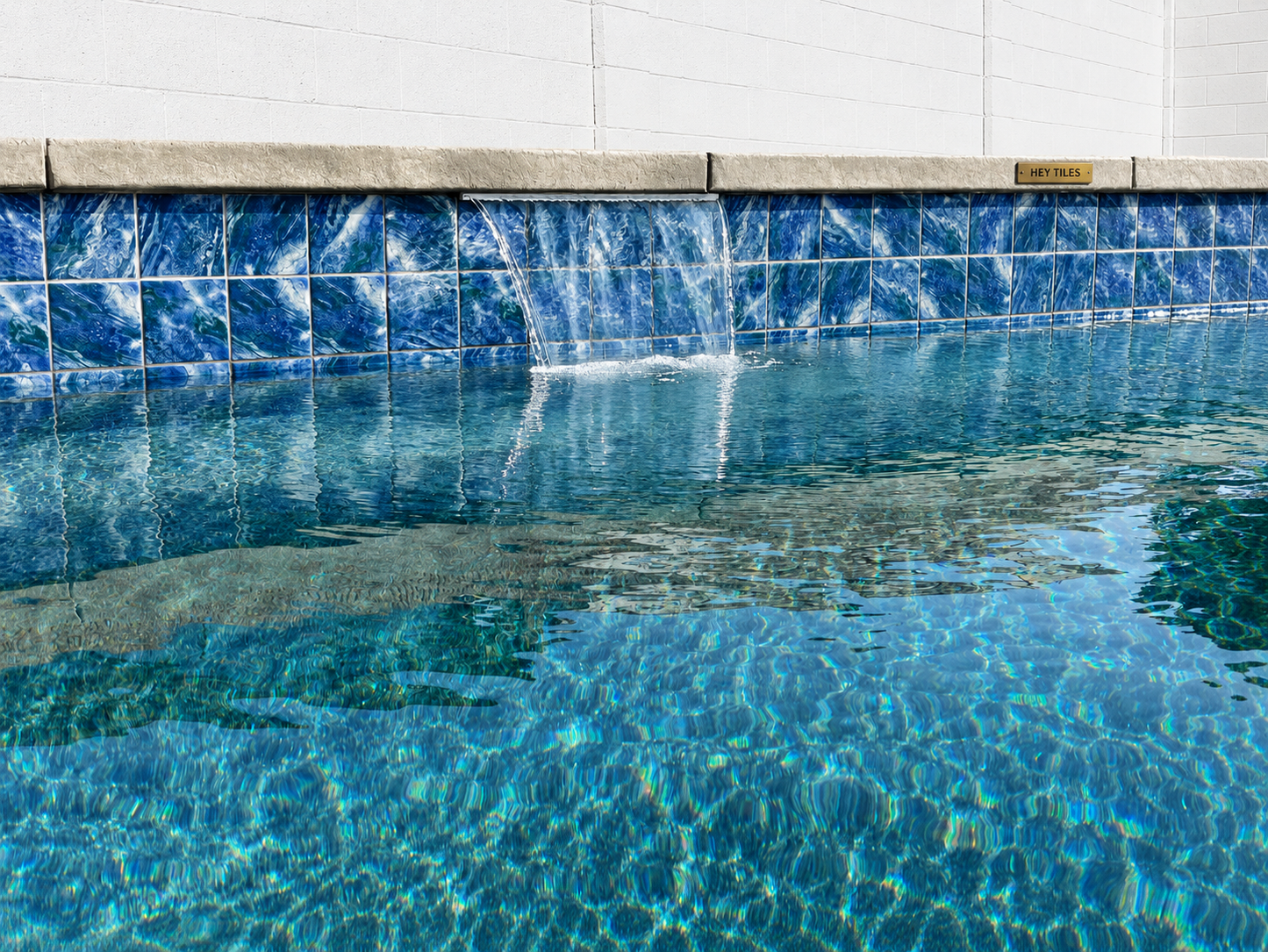

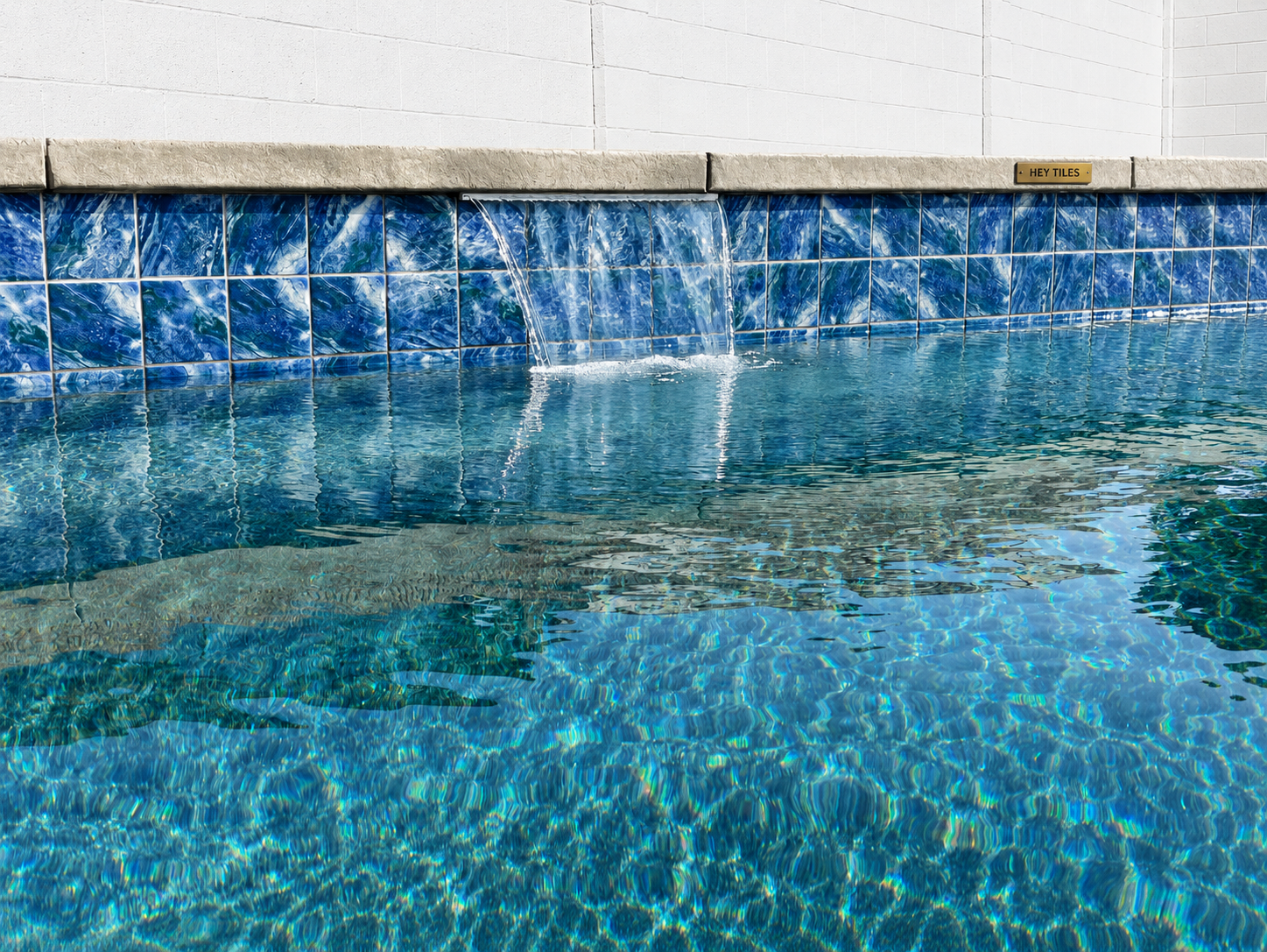

Each 12" x 12" mesh-backed sheet is engineered with an impervious high-fired porcelain core (< 0.5% water absorption), making it completely frost-proof, pool-chemical resistant, stain-proof, and weather-durable. The glossy, light-reflecting surface creates a striking visual frame along pool waterlines, raised spa bond beams, outdoor shower feature walls, and waterfalls.
✨ KEY FEATURES
-
Classic Mosaic Grid Scale: Timeless small-format square layout provides excellent foot traction on steps and clean alignment along waterlines.
-
Submerged Aquatic Performance: High-fired Japanese porcelain body is frost-proof, chemical-resistant, stain-proof, and moisture-proof (< 0.5% absorption).
-
Vibrant "Persian Blue" Palette: Deep cobalt and sapphire glaze pairs effortlessly with white, French gray, or dark pebble pool plaster finishes.
-
Flexible Mesh-Backed Sheets: Pre-assembled on ~12" x 12" sheets (1.0 sq. ft./sheet) for efficient, uniform installation along straight or curved pool walls.
-
Low-Maintenance Surface: Smooth, high-gloss glaze prevents algae adhesion, scum line buildup, and hard water scaling.
📊 SPECIFICATIONS
| Technical Property |
Details |
| Manufacturer |
Fujiwa Tile |
| Collection Name |
Rio Series |
| Model / SKU |
RIO-901 (Persian Blue) |
| Material Type |
High-Fired Glazed Porcelain |
| Sheet Dimensions |
Approx. 12" Width x 12" Length |
| Thickness |
Approx. 1/4" to 5/16" (~6–8 mm) |
| Surface Finish |
Smooth Glossy Glazed |
| Water Absorption |
Impervious (< 0.5%) |
| Packaging |
10 Sheets (10.0 Sq. Ft.) per box / ~22–26 lbs |
| Applications |
Pool Waterlines, Spas, Steps, Waterfalls, Kitchen Backsplashes, Shower Walls |
🛠️ INSTALLATION REQUIREMENTS
⚠️ CRITICAL WARNING: SUBMERGED WATERPROOFING & MORTAR SELECTION
-
Pool-Grade Polymer-Modified Thinset: Always set porcelain pool tiles using an ANSI A118.15-compliant polymer-modified thinset mortar specified for submerged applications (such as LATICRETE® 254 Platinum or MAPEI® Kerabond T / Keralastic System).
-
100% Mortar Coverage: Back-butter mesh sheets as needed to ensure complete thinset contact behind all porcelain chips, eliminating hollow air pockets beneath water pressure.
Professional Installation Recommendations
-
Recommended Grout: Pair with a high-performance waterproof pool grout (such as LATICRETE® Spectralock® PRO Premium Epoxy Grout) in "Cobalt Blue" or "Dark Charcoal" for a seamless aquatic field, or "Bright White" to sharply highlight the grid alignment.
-
Grout Joint Width: Pre-spaced on the flexible mesh backing for uniform joint alignment throughout.
-
Cure Time: Allow a full cure time of 14 to 21 days before filling pools or spas with water.
💡 PRO CARE & MAINTENANCE TIPS
1. Routine Waterline Cleaning: Clean regularly using a soft sponge or soft brush and a pH-neutral pool tile cleaner to remove mineral deposits and body oils.
2. Maintain Water Chemistry: Keep pool pH (7.2–7.6) and calcium hardness balanced to prevent scale buildup along the glossy glaze.
3. Zero Sealing Required: Non-porous glazed porcelain requires no topical sealers, waxes, or protective coatings over its lifetime.
💬 FREQUENTLY ASKED QUESTIONS
Q: Is Fujiwa RIO-901 Persian Blue safe for freeze-thaw winter climates?
A: Yes! Fujiwa porcelain tiles are high-fired with less than 0.5% water absorption, making them completely frost-proof and suitable for submerged outdoor applications in freeze-thaw climates.
Q: Can RIO-901 Persian Blue be used on pool steps or spa seats?
A: Yes. The small mosaic format creates frequent grout lines that provide enhanced foot traction for submerged pool steps, swim-outs, and sun shelf entryways.
Q: How many sheets should I order for a pool waterline?
A: Calculate your pool perimeter in linear feet. Since each sheet is 12 inches (1 foot) wide, multiply your waterline height fraction (e.g., 0.5 ft for a 6-inch row) by the perimeter, divide by 1.0 sq. ft. per sheet, and add 10% to 15% extra for waste and edge trimming.
