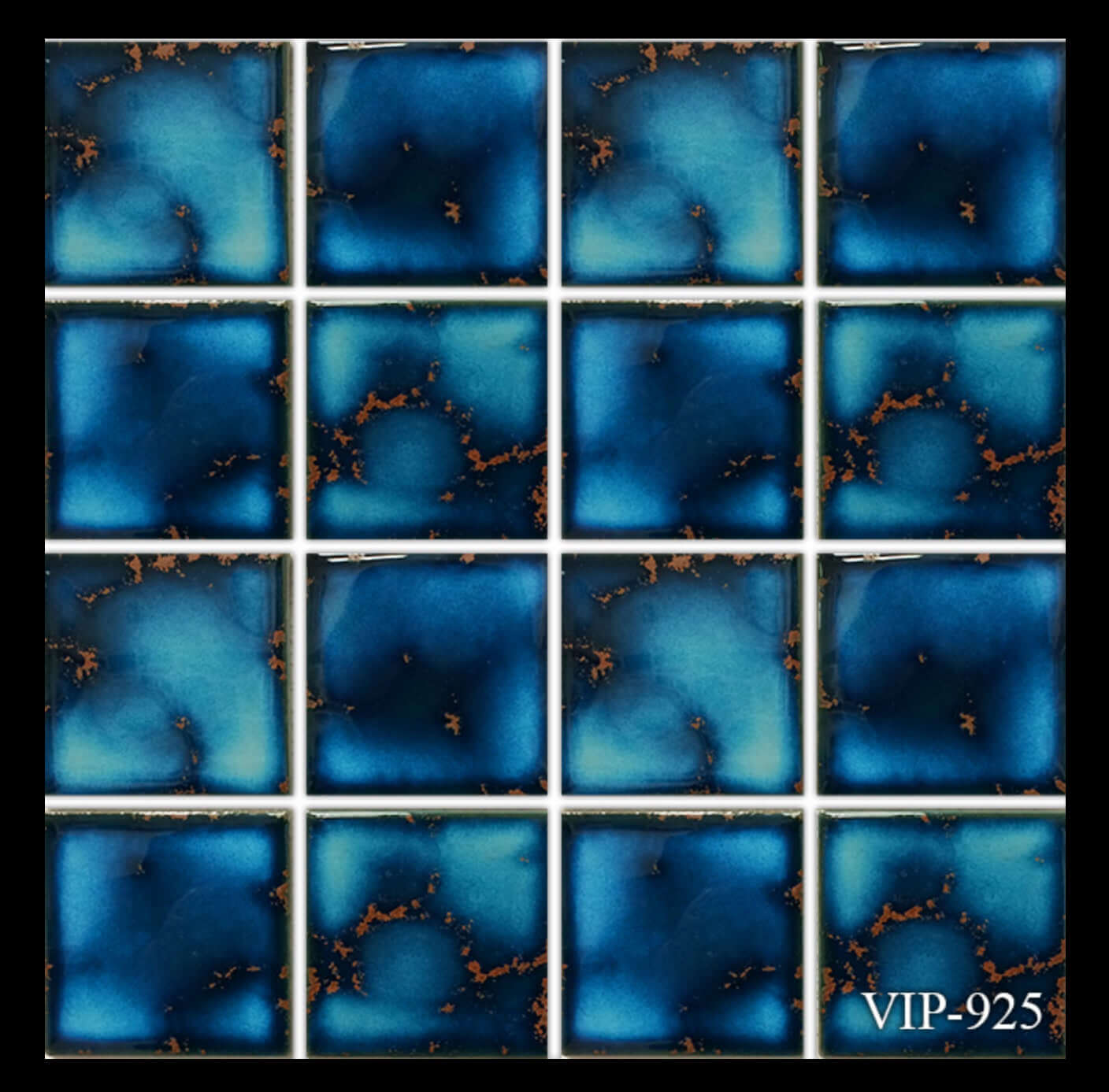

Fujiwa Tile VIP 3x3 Series, Marble Blue Pool Rated Mosaic

Technical Specifications

Installation and Handling Guidelines

⚠️ CRITICAL WARNING: AQUATIC & POOL MORTAR PROTOCOL

• Thinset Mortar Selection: Swimming pool and submerged tile installations require high-flexibility, polymer-modified thinset specified for submerged aquatic environments. Install using an ANSI A118.15-compliant latex-polymer modified mortar (such as MAPEI® Kerabond T / Keralastic System or LATICRETE® 254 Platinum).

• 100% Mortar Coverage: Achieving 100% mortar contact behind every tile sheet is mandatory in submerged applications. Voids or air pockets behind tiles trapped underwater can cause moisture accumulation, efflorescence, and eventual tile pop-offs.

• Grout Selection: Use a high-performance, water-resistant grout specified for swimming pools, such as a high-density cementitious grout (ANSI A118.7) or 100% solid industrial epoxy grout (ANSI A118.3 like MAPEI® Kerapoxy or LATICRETE® SpectraLOCK® Pro Premium) for maximum stain and chemical resistance.

Professional Recommendations

• Waterline Curing Time: Allow thinset and grout to fully cure per manufacturer instructions (typically 14 to 21 days minimum) before filling the pool with water or adding pool chemicals.

• Movement Joints: Install expansion joints at all plane changes, pool corners, and coping transitions per TCNA EJ171 guidelines.

Care and Maintenance

• Routine Cleaning: Clean pool waterline scale and body oils using a non-abrasive pool tile cleaner or a soft brush with pH-neutral soap.

• Chemical Balance: Maintain proper water chemistry (pH, total alkalinity, and calcium hardness) to prevent calcium scale buildup or mineral deposits along the waterline.

• Zero Sealing Required: Non-porous glazed porcelain is completely impervious to water penetration and never requires sealers or topical coatings.

Frequently Asked Questions

Is Fujiwa VIP 3x3 Marble Blue suitable for saltwater swimming pools?

Yes! Fujiwa glazed porcelain tiles are fully impervious (< 0.5% water absorption) and chemical-resistant, making them completely safe for both traditional chlorine and saltwater pool systems.

Can this tile withstand freezing winter weather?

Absolutely. Fujiwa pool tiles are tested and certified frost-proof (ASTM C1026). They are engineered to endure severe freeze-thaw winter cycles without cracking, spalling, or debonding when installed with proper movement joints and ANSI A118.15 thinset.

What are the benefits of a 3" x 3" format over smaller 1" x 1" mosaics?

The 3" x 3" size offers a clean, balanced grid with fewer grout lines to scrub than 1x1 mosaics, while still providing enough flexibility to follow curved pool walls, steps, and spa benches smoothly.

Why is pool-rated thinset required instead of standard tile mortar?

Submerged pool tiles are subject to constant water pressure, chemical exposure, and thermal expansion. Standard interior thinsets will break down underwater over time, leading to tile detachment. Always use an ANSI A118.15 or ANSI A118.3 aquatic-rated thinset and grout.
