Rockmount XL-Series: Canyon Oak 9" x 12" x 6" Natural Limestone Ledger Corner Panel by MSI

The "Monolithic Column" Architectural Wrap Wrapping an outward 90-degree corner with heavy splitface stone used to mean slow, grueling miter cuts on-site that often resulted in fragile, jagged edges. The MSI XL Rockmount Canyon Oak Corner Panel provides an elegant, factory pre-formed workaround. It represents the height of modern "Desert Minimalist" and "Warm Contemporary" architectural cladding. Engineered specifically to fold seamlessly around fireplace corners, exterior support pillars, and multi-story accent columns, this L-shaped companion unit hides the wall construction lines entirely, transforming horizontal-to-vertical breaks into a structural statement that looks like a single block of natural quarried limestone.

PRODUCT DESCRIPTION Achieve a continuous, authentic masonry frame on raw vertical edges with the XL Rockmount Canyon Oak Corner Panel. Exclusively produced by M S International (MSI) as the required accessory companion to the matching 9" x 24" Flat Field Ledger Panels, this heavy-duty 9" x 18" nominal unit handles structural intersections smoothly. Diverging from darker or colder commercial grays, Canyon Oak introduces a warm, sophisticated palette: an organic foundation of light gray and soft cream fields, gracefully detailed with natural linear striations, delicate beige shading, and faint ivory mineral undertones.

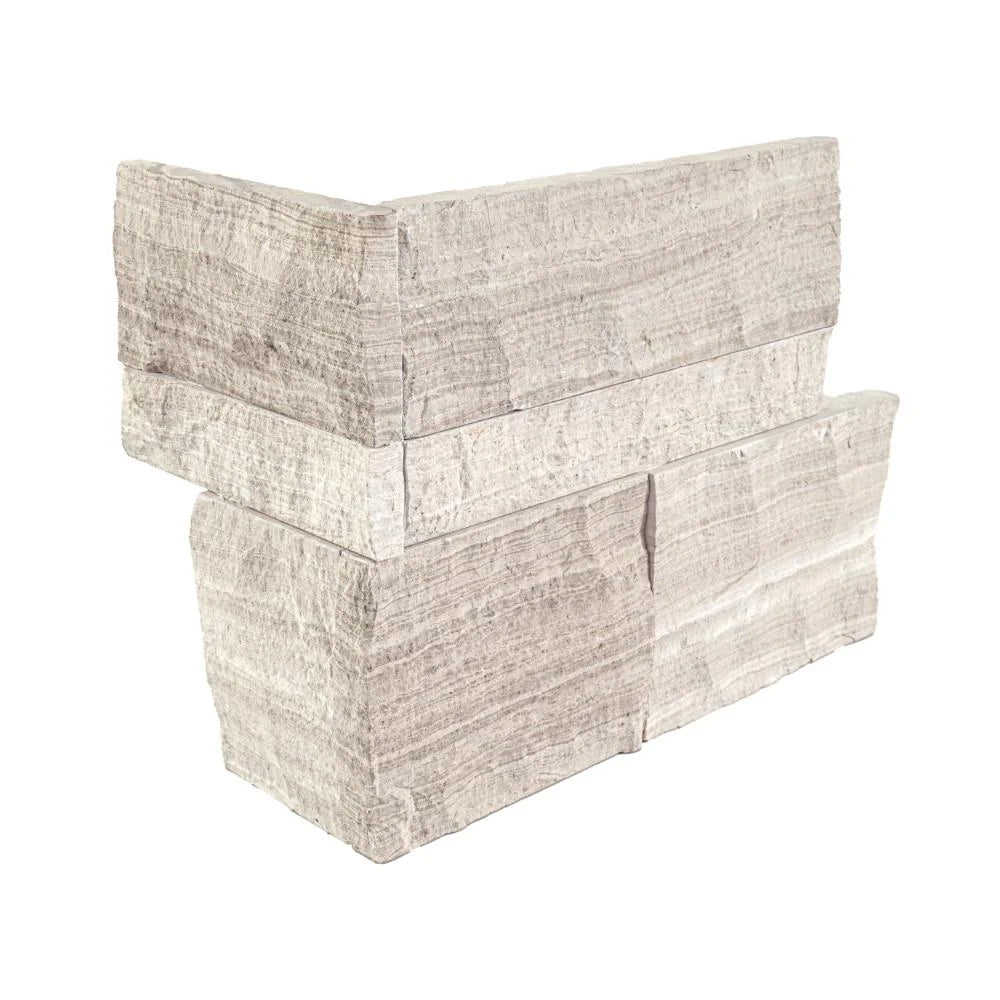

The XL Corner Series is designed with an asymmetric configuration, offering two pre-jointed return legs (12" on the long return and 6" on the short return) to allow for staggered horizontal rows. The factory finish highlights the limestone’s authentic Natural splitface texture, sorting raw stone fragments into highly structural variable depths averaging 0.75 inches. This rugged, multi-dimensional surface plays beautifully with room lighting, casting long, elegant shadows that shift dynamically throughout the day. Sourced from high-grade geological limestone, this grout-free nesting block delivers premium durability on all interior and exterior walls.

KEY FEATURES

• Pre-Formed 9" x 12" x 6" "L" Return: A factory-engineered 90-degree angle that avoids slow field fabrication, keeping exposed corner transitions structural and uniform.

• Warm Greige Limestone Palette: A light, earthy color spectrum featuring soft grays, creams, and ivory veins that adds organic warmth to minimalist rooms.

• High-Relief Splitface Clefts: Real fractured limestone strips grouped together to offer sharp 3-dimensional movement that faux-stone concrete copies cannot match.

• Groutless Modular Interlocking: Seamlessly meshes with adjacent 9" x 24" flat field sheets, preserving a continuous, dry-stacked stone texture free of artificial grid lines.

• Premium Architectural Limestone: Densely structured core capable of handling freezing northern winters and hot, direct exterior exposure without cracking or spalling.

SPECIFICATIONS

INSTALLATION REQUIREMENTS

⚠️ CRITICAL: BRIGHT WHITE LHT MORTAR SELECTION: Because Canyon Oak is a genuine natural limestone composed of light, porous mineral layers, you must use a premium, polymer-modified Bright White Large and Heavy Tile (LHT) Mortar meeting ANSI A118.15 standards. Standard gray thin-set or low-grade adhesive will seep dark moisture shadows through the backside of the stone while curing, permanently dulling your clean gray-and-cream corner faces into a muddy, washed-out tone.

Professional Recommendations:

• The Alternating "Flip-Flop" Layout: To execute a perfectly natural masonry column look, stagger the orientation of the corner pieces on alternating rows. Rotate the panel 180 degrees on every other row so the long leg (12") and short leg (6") swap sides. This completely breaks up the vertical joint line running down the wall edge.

• Corner-First Installation Sequence: Always place your 9" x 12" x 6" corner pieces first at your starting row base elevation. Once the corner is adjusted and plumb, work your flat 9" x 24" field sheets outward, away from the corner, across the horizontal field.

• Wet Saw Cutting Mandate: Natural limestone contains crystalline silica. Installers must utilize a professional wet tile saw fitted with a continuous-rim diamond blade for all alterations. Never dry-cut these corners, as inhaling airborne silica dust causes permanent respiratory damage.

FREQUENTLY ASKED QUESTIONS

Do these natural limestone corners require a sealer? Yes. For interior fireplaces, sealing protects against airborne dust and soot. For outdoor barbecues, patio columns, or exterior facades, applying a premium, non-yellowing penetrating/impregnating sealer is highly mandatory. This invisible layer blocks rain water absorption and shields the light-colored stone from water staining or efflorescence (white mineral salts bleeding out of the mortar).

Can I install these ledger corners directly over standard drywall? No, this is highly discouraged due to the heavy dead-load weight (~13 lbs per square foot). These heavy corner pieces must be mechanically fastened over a rigid cement backer board securely attached to framing studs at 12-inch intervals, or installed directly over a structurally sound masonry block foundation. Drywall paper will tear and detach under this weight.

PRO DESIGN TIPS

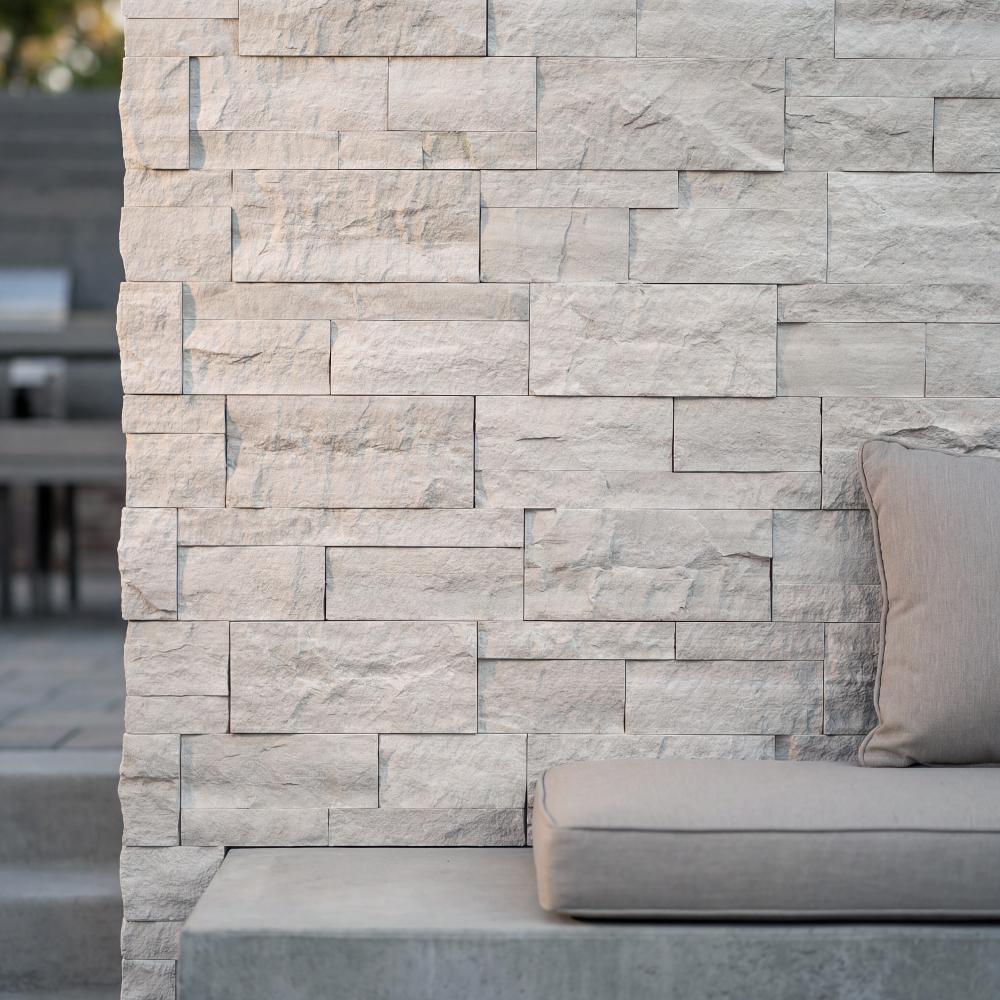

• The Staggered Architectural Post: Wrap a three-sided fireplace bump-out or an outdoor kitchen island using these corner pieces. Alternating the long and short legs completely tricks the eye, making the entire structure appear to be built from hand-laid, thick stone blocks.

• Grazing Lighting Schemes: Position warm-spectrum (2700K to 3000K) overhead LED spotlights or hidden floating valance lighting directly above the stone corner. The grazing angle accentuates the 0.75-inch split-face layers, multiplying the dramatic shadow play around the corner geometry at night.

• Clean Desert Transitions: Lean into the soft desert-modern aesthetic by pairing the stone tile with warm white oak flooring, sandy linen fabrics, and minimalist matte black hardware. The black metallic notes act as a sharp architectural frame that makes the warm cream stone glow.
