Rockmount XL-Series: Canyon Oak 9" x 24" Splitface Quartzite Ledger Panel by MSI

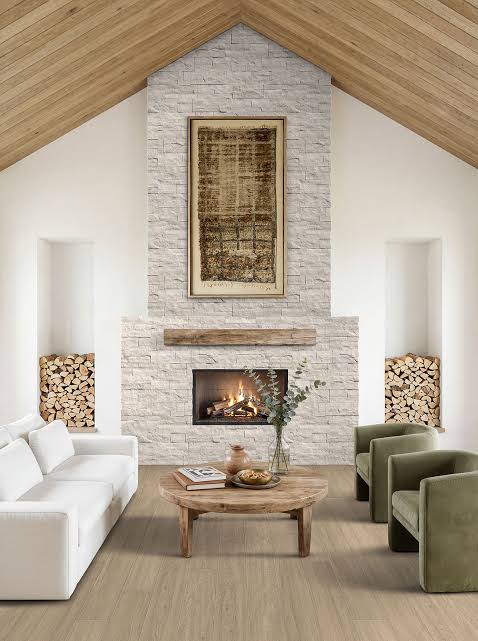

XL Canyon Oak Fireplace Installation. Source: MSI Surfaces

The "Sun-Washed Desert" Architectural Monolith While standard thin ledger panels can create a frantic, heavily fragmented visual texture on large structures, the MSI Rockmount XL Canyon Oak Ledger Panel scales up the individual stone elements for maximum architectural presence. It represents the pinnacle of "Desert Modern," "Warm Contemporary," and "Rustic Minimalist" design trends. By scaling each panel to a grand 9" x 24" profile, it increases the total surface footprint by 50% per piece. This expanded layout minimizes repetitive horizontal joint lines, allowing substantial block shards of genuine quartzite stone to form a sweeping, continuous masonry canvas across majestic fireplaces and exterior structural facades.

PRODUCT DESCRIPTION Infuse your home's vertical landscape with the organic, sun-bleached warmth of the XL Rockmount Canyon Oak Ledger Panel. Meticulously sourced and configured by M S International (MSI) from heavy-duty runs of high-density natural quartzite stone, this premium cladding panel brings a soft, sand-textured luxury to contemporary spaces. The color profile showcases an exceptionally soothing, earthy spectrum: a dominant base of light cream, soft sand, and warm ivory tones, accented by delicate hints of golden oak, muted beige shading, and faint crystalline quartz highlights.

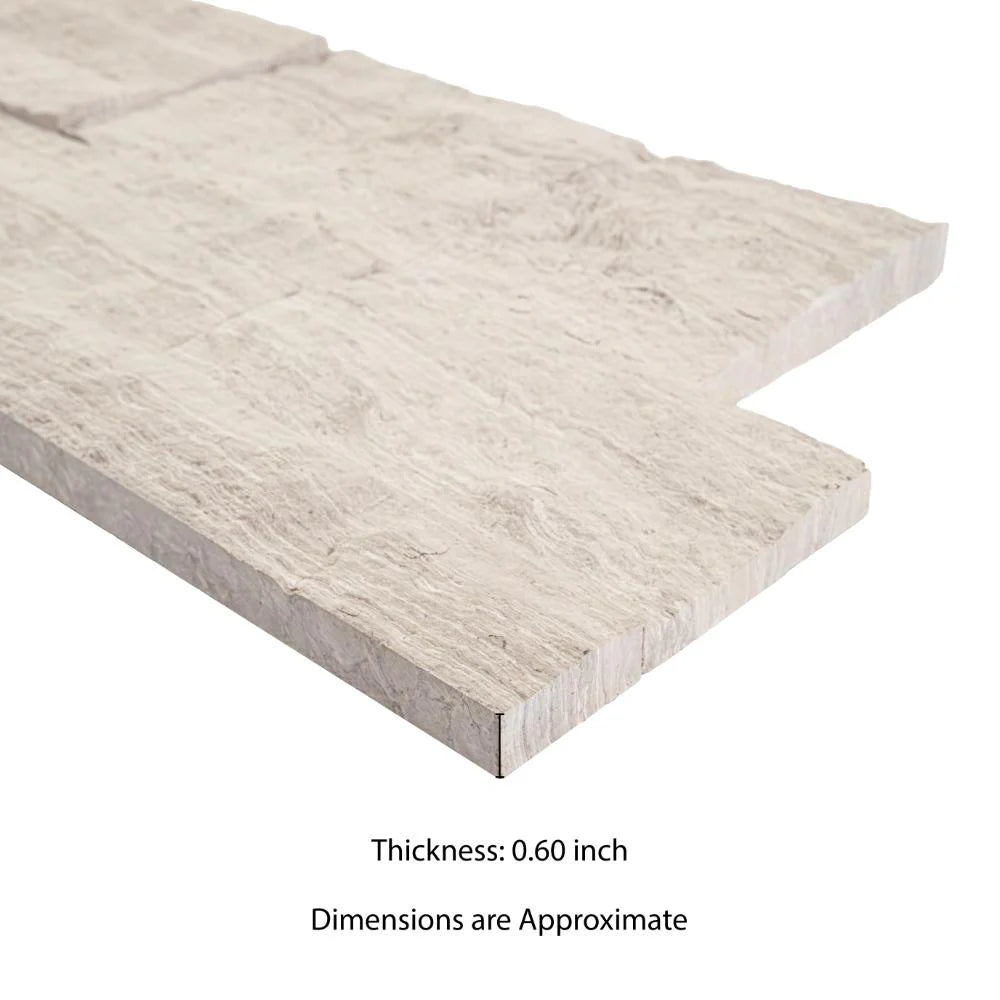

The XL Series is purposefully engineered to construct visual weight and bold tectonic character. Rather than utilizing uniform, flat sawn surfaces, Canyon Oak features a raw Splitface finish—meaning the quartzite is fractured along its natural crystalline fault lines to expose a rugged, tactile cleft. The stone strips are hand-assembled into interlocking panels with variable thicknesses averaging 0.75 inches in depth. As seen in the room layout above, this multi-dimensional topography creates a layered shadow play that softens modern interior angles and reacts dynamically to grazing natural sunlight or focused spotlights.

KEY FEATURES

• Oversized XL 9" x 24" Framework: Large-format modular panels reduce visible horizontal seams, providing a seamless "dry-stacked masonry" appearance across wide walls.

• Warm Canyon Oak Palette: A curated mix of sand, cream, and soft golden-tan undertones that perfectly coordinates with light white oak timber finishes and desert design styles.

• Textured Splitface Clefts: Genuine fractured quartzite faces offer bold 3D physical depth and organic light dispersion that cement-based faux-stone veneers cannot replicate.

• Grout-Free Interlocking Tabs: Stepped, puzzle-like interlocking boundaries allow adjacent panels to nest tightly against one another, completely hiding grid line joints.

• Premium All-Weather Quartzite: Naturally durable with high thermal stability, making it fully capable of enduring freezing winter freeze-thaw cycles and direct solar heat exposures.

SPECIFICATIONS

INSTALLATION REQUIREMENTS

⚠️ CRITICAL: BRIGHT WHITE LHT MORTAR SELECTION: Because Canyon Oak is a natural quartzite composed of light, crystalline mineral structures, you must use a premium, polymer-modified Bright White Large and Heavy Tile (LHT) Mortar meeting ANSI A118.15 standards. Standard gray thin-set or low-grade adhesive will seep dark moisture shadows through the backside of the porous stone while curing, permanently dulling your bright sand-and-cream panel faces into a muddy, washed-out tone.

Professional Recommendations:

• Substrate Structural Evaluation: Due to the extreme weight of these oversized panels (~12 lbs per square foot), they cannot be installed over standard drywall or wallpaper. They must be anchored over a rigid cement backer board (firmly screwed to studs at 12-inch intervals) or applied directly over clean, structurally sound masonry or concrete block foundations.

• The Multi-Box Grid Shuffle: Natural stone inherently carries lot-to-lot and block variation. Before applying any adhesive, unpack at least 3 to 4 boxes and lay the panels out on the floor. Mix panels with heavier golden-oak accents evenly with the lighter cream pieces to ensure a completely balanced visual distribution across your wall surface.

• Wet Saw Cutting Only: Quartzite is incredibly dense and contains natural crystalline silica. Installers must utilize a professional wet tile saw fitted with a continuous-rim diamond blade for all alterations. Never dry-cut these panels, as inhaling airborne silica dust causes severe, permanent respiratory damage.

FREQUENTLY ASKED QUESTIONS

Do these natural quartzite panels require a sealer? For interior dry feature walls, sealing is optional but recommended to keep dust from clinging to the clefts. For outdoor facades, patio retaining walls, or surrounding a fireplace hearth, applying a premium, non-yellowing penetrating/impregnating sealer is highly mandatory. This invisible defense layer stops rainwater absorption and shields the light-colored stone from soot discoloration or efflorescence (white mineral salts bleeding out of the mortar).

Can this splitface stone look be installed inside a wet shower enclosure? No, this is highly discouraged. While it handles exterior storm rain perfectly due to open-air evaporation, the dense, un-grouted crevices of a dry-stack ledger panel will trap falling body oils, soap scum, and hard water minerals in an indoor enclosed shower. Over time, this leads to mold growth that is nearly impossible to scrub out. Keep this tile limited to dry accent walls, fireplaces, and outdoor facades.

PRO DESIGN TIPS

• The Pre-Formed Corner Solution: If wrapping an outward 90-degree corner (such as an exterior support pillar or a three-sided fireplace), pair these flat panels with matching XL Canyon Oak Corner L-Pieces. Flip-flop the corner blocks 180 degrees on alternating rows (alternating the long and short legs) to completely hide the vertical corner seam and preserve a solid-masonry look.

• Grazing LED Lighting Schemes: Install warm-spectrum (2700K to 3000K) overhead LED spotlights or a hidden valance strip directly above the stone feature wall. Setting the lights to graze down the wall catches the rugged top edges of the splitface clefts, projecting intense, sharp shadows that maximize the 3D depth of the stone at night.

• Warm Organic Harmonies: Lean into the soft desert-modern aesthetic by pairing the tile with warm white oak flooring, sandy linen fabrics, and minimalist matte black hardware. The black metallic notes act as a sharp architectural frame that makes the warm cream stone glow.
