Product Overview

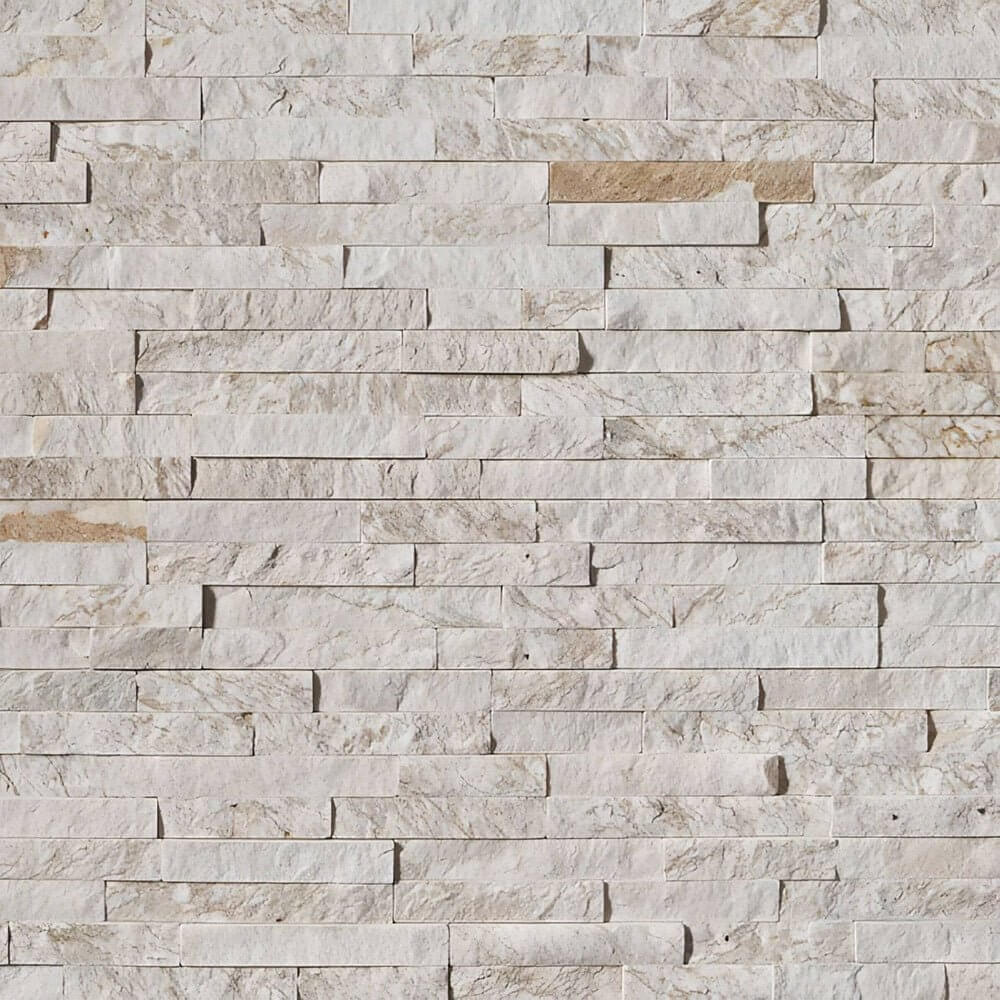

MSI Royal White Splitface Ledger 6" x 24" Panel Wall Tile delivers rich dimensional texture, warm architectural sophistication, and timeless natural stone beauty to interior and exterior feature walls. Part of MSI's popular Rockmount® Collection, each 6" x 24" interlocking panel is crafted from genuine splitface marble, featuring hand-cut strips of stone arranged in a rustic stacked ledger format.
The Royal White color profile offers an elegant, creamy off-white background subtly interwoven with warm beige, pale gold, and soft gray undertones. Designed with an interlocking Z-panel cut, these pre-assembled panels fit together seamlessly without visible grout lines—delivering an authentic stacked-stone wall with efficient, straightforward installation.
Technical Specifications
| Technical Property |
Value / Specification |
Notes / Compliance |
| Brand / Line |
MSI Rockmount® Series |
Natural Stone Ledger Panels |
| Material Type |
100% Genuine Marble |
Natural Splitface Stone |
| Nominal Dimensions |
6" W x 24" L (Approx. 15 cm x 60 cm) |
Interlocking Panel Format |
| Thickness |
Approx. 3/4 in. to 1-1/4 in. (19 mm – 32 mm) |
Dimensional Textured Relief |
| Surface Finish |
Natural Cleft / Splitface |
Rough-Hewn Crystalline Texture |
| Color Profile |
Royal White (Warm Off-White, Cream, Soft Gold & Light Gray) |
Moderate Natural Shade Variation (V2-V3) |
| Edge Detail |
Interlocking Z-Panel Cut |
Conceals Vertical Panel Joints |
| Recommended Applications |
Interior Accent Walls, Fireplace Surrounds, Exterior Facades* |
Dry & Wet Vertical Wall Locations |
*For exterior or high-moisture applications, confirm site-specific substrate load capacity, waterproofing, and natural stone setting requirements prior to installation.
Recommended Applications
-
Fireplace Surrounds & Feature Walls: Creates a warm, inviting floor-to-ceiling focal point in living rooms, grand foyers, and commercial reception areas.
-
Exterior Building Facades & Retaining Walls: Adds rugged natural stone character to entry pillars, patio feature walls, outdoor kitchen islands, and pool retaining walls.
-
Bathroom & Spa Accent Features: Ideal for dry accent walls, vanity backdrops, and spa features where soft off-white stone evokes a tranquil environment.
Installation & Handling Guidelines
⚠️ IMPORTANT: NATURAL STONE LEDGER PANEL INSTALLATION PROTOCOL
-
Substrate Load Capacity & Flatness: Ledger panels are heavy natural stone (approx. 8–10 lbs per sq. ft.). Ensure wall substrates (concrete, cement backer board, or masonry) are structurally rated to carry heavy vertical stone loads.
-
White LFT Thin-Set Mortar Required: Install using a high-performance, polymer-modified Large & Heavy Tile (LFT) pure white thin-set mortar or natural stone mortar (ANSI A118.4 / ANSI A118.15). White mortar prevents dark shadowing through light marble pieces.
-
Tight-Joint Installation (No Grout): Interlocking Z-panels are engineered to butt tight against one another without grout joints. Stagger horizontal panel joints in a running bond pattern to hide seams.
-
Pre-Sealing & Testing: Apply a high-quality penetrating natural stone sealer after installation to protect against dirt accumulation, water absorption, and staining—especially on exterior or high-use walls.
Care & Maintenance
-
Routine Cleaning: Dust or vacuum textured stone crevices using a soft brush attachment. Clean periodically with warm water and a neutral pH natural stone cleaner.
-
Avoid Harsh Chemicals: Do not use acidic cleaners, vinegar, bleach, or high-pressure power washers at close range, which can damage natural marble surfaces.
-
Periodic Resealing: Reapply a penetrating stone sealer every 2 to 4 years on exterior installations to maintain stain protection and freeze-thaw durability.
Design Profile
-
Aesthetic Inspiration: Warm Modern Minimalist, Tuscan Villa, Mediterranean Resort, Coastal Organic.
-
Visual Advantage: The dimensional splitface relief combined with warm cream and gold undertones brings inviting organic texture to spaces without looking stark or clinical.
-
Complementary Finishes: Warm natural wood millwork, champagne bronze or matte black hardware, travertine or limestone flooring, and soft ivory or warm gray walls.
Frequently Asked Questions
Does MSI Royal White Splitface Marble require grout?
No. Ledger panel tiles are designed to interlocking-butt tightly together without grout lines, creating a continuous stacked-stone appearance.
Can Royal White Splitface panels be used around a fireplace?
Yes! Natural marble ledger panels are non-combustible and ideal for fireplace surrounds, chimney breasts, and hearth accent walls when installed over suitable heat-resistant substrates.
Is this ledger panel tile suitable for outdoor freeze-thaw climates?
Yes, provided the panels are set using freeze-thaw rated white polymer mortars, properly sloped caps/flashing to prevent water pooling behind the stone, and sealed with a penetrating exterior stone sealer.
