Product Overview

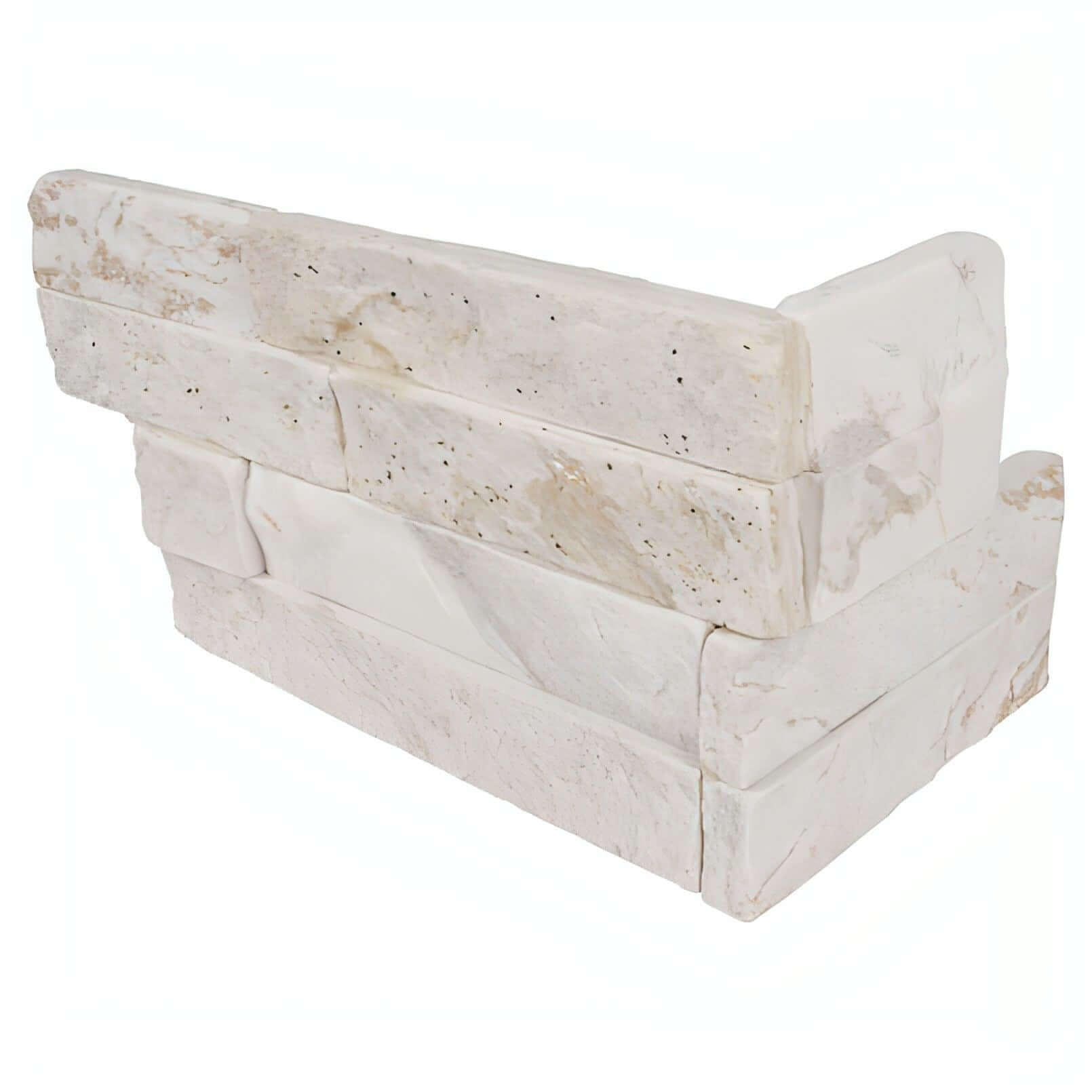

MSI Royal White Splitface Ledger Corner “L” 6" x 12" x 6" is a specialized 2-piece, L-shaped natural stone corner panel designed to create flawless 90-degree outside corners for stacked stone installations. Part of MSI’s Rockmount® Collection, each corner panel is crafted from genuine splitface marble, featuring hand-cut stone strips arranged in a dimensional, splitface ledger format.
The
Royal White color profile offers an elegant, creamy off-white background subtly layered with warm beige, light gold, and pale gray undertones. Engineered as a 2-piece stepped "L" corner (6" height x 12" long leg x 6" short leg), it eliminates raw saw-cut edges and visible vertical seams at outside corners, matching seamlessly with standard 6" x 24" Royal White flat ledger panels.
Technical Specifications
| Technical Property |
Value / Specification |
Notes / Compliance |
| Brand / Collection |
MSI Rockmount® Collection |
Natural Stone Ledger Panels |
| Material Type |
100% Genuine Marble |
Natural Splitface Stone |
| Panel Format |
2-Piece Interlocking "L" Corner Set |
Outside 90° Corner Piece |
| Nominal Dimensions |
6" H x 12" L (Long Leg) x 6" L (Short Leg) |
Standard Ledger Corner Proportion |
| Thickness |
Approx. 3/4 in. to 1-1/4 in. (19 mm – 32 mm) |
Dimensional Textured Relief |
| Surface Finish |
Natural Cleft / Splitface |
Rough-Hewn Natural Texture |
| Color Profile |
Royal White (Warm Off-White, Cream, Soft Gold & Light Gray) |
Moderate Natural Shade Variation (V2-V3) |
| Edge Detail |
Precision Stepped 90° L-Corner |
Seamless Outside Corner Joint |
| Recommended Applications |
Fireplace Corners, Outdoor Columns, BBQ Islands, Wall Returns* |
Interior & Exterior Vertical Corners |
*For exterior or high-moisture applications, confirm site-specific substrate load capacity, waterproofing, and natural stone setting requirements prior to installation.
Recommended Applications
-
Fireplace Chimneys & Surrounds: Wraps 90-degree outside corners on fireplace surrounds and chimney breasts without exposed, untextured saw-cut edges or vertical grout lines.
-
Exterior Building Columns & Pillars: Creates an authentic, heavy hand-laid masonry appearance on porch pillars, entryway columns, and patio retaining wall ends.
-
Outdoor Kitchen Islands & Bar Returns: Delivers clean, continuous stone wrapping around outdoor grilling stations, raised planter boxes, and patio walls.
Installation & Handling Guidelines
⚠️ IMPORTANT: NATURAL STONE LEDGER CORNER INSTALLATION PROTOCOL
-
Install Corners First: Always set your outside corner L-panels first before laying flat ledger panels. Alternate (stagger) long and short legs on every row (row 1: long leg left; row 2: long leg right) to prevent vertical alignment seams up the corner.
-
White LFT Thin-Set Mortar Required: Install using a high-performance, polymer-modified Large & Heavy Tile (LFT) pure white thin-set mortar (ANSI A118.4 / ANSI A118.15). White mortar prevents dark shadowing behind lighter marble pieces.
-
Tight-Joint Installation (No Grout): Corner panels are engineered to butt tight against one another and adjacent flat panels without grout lines.
-
Substrate Structural Rating: Ensure concrete, masonry, or cement backer board substrates are structurally rated to support heavy stone loads (approx. 8–10 lbs per sq. ft.).
-
Pre-Sealing: Apply a high-quality penetrating natural stone sealer after installation to protect against dirt accumulation, water absorption, and environmental staining.
Care & Maintenance
-
Routine Cleaning: Dust or vacuum textured stone crevices using a soft brush attachment. Clean periodically with warm water and a neutral pH natural stone cleaner.
-
Avoid Harsh Chemicals: Do not use acidic cleaners, vinegar, bleach, or high-pressure power washers at close range, which can damage natural marble surfaces.
-
Periodic Resealing: Reapply a penetrating stone sealer every 2 to 4 years on exterior installations to preserve stain defense and freeze-thaw durability.
Design Profile
-
Aesthetic Inspiration: Warm Modern Minimalist, Tuscan Villa, Mediterranean Resort, Coastal Organic.
-
Visual Advantage: Wraps corners smoothly without raw saw-cut stone edges, giving outside corners the substantial look of solid, hand-cut marble masonry blocks.
-
Complementary Finishes: Royal White 6x24 flat ledger panels, warm natural wood millwork, champagne bronze or matte black hardware, and light travertine or limestone flooring.
Frequently Asked Questions
Why are corner L-panels used instead of cutting flat ledger panels at 45 degrees?
Factory-made L-panels feature finished splitface stone on both outer faces, creating a seamless, natural corner. Miter-cutting flat panels on site leaves raw, untextured saw lines exposed at the corner joint.
How do I stagger the corner L-panels during installation?
Flip the corner pieces on alternating rows (row 1: long leg left; row 2: long leg right) so the vertical seams where corner pieces meet flat ledger panels are staggered naturally across the wall.
Is Royal White natural marble frost-proof for cold outdoor climates?
Yes, provided corner panels are installed using polymer-modified freeze-thaw rated white mortar, proper wall flashing to prevent water pooling behind the stone, and an exterior penetrating sealer.
