Product Overview
Stoneledge Series Azurite 6" x 6" Porcelain Pool Tile brings the dramatic texture and rich mineral coloration of natural stacked ledge stone to swimming pool perimeters and outdoor water features. Featuring a high-relief, dimensional stone texture glazed in deep azurite blue, slate, and subtle charcoal-earth undertones, it captures the rustic elegance of natural rock with the technical superiority of glazed porcelain.
Engineered specifically for continuous submersion and harsh exterior exposure, this 6" x 6" tile combines high-definition stone textures with the non-porous imperviosity of high-fired vitrified porcelain. Its multi-tonal glaze catches sunlight beneath moving water, creating an expressive, textured waterline border that resists pool chemicals, UV rays, and mineral scaling.
Technical Specifications
| Technical Property |
Value / Specification |
Notes / Compliance |
| Collection / Series |
Stoneledge Series (Azurite) |
Textured Ledge Stone-Look Porcelain |
| Nominal Dimensions |
6" x 6" (15 cm x 15 cm) |
Standard Square Aquatic Format |
| Thickness |
Approx. 5/16 in. to 3/8 in. (8 mm - 9.5 mm) |
Dimensional Textured Relief |
| Material Type |
Glazed Vitrified Porcelain |
Chemical & Moisture Impervious |
| Surface Finish |
Textured Low-Luster Glaze |
High-Relief Ledge Stone Surface |
| Color Profile |
Azurite (Deep Mineral Blue, Slate & Earth Tones) |
High Shade & Texture Variation (V3-V4) |
| Edge Detail |
Pressed / Chiseled Edge Look |
Designed for Standard Mortar Joints |
| Recommended Applications |
Pool Waterlines, Spas, Fountains, Raised Walls, Patios |
Submerged & Exterior Wet Locations |
Recommended Applications
-

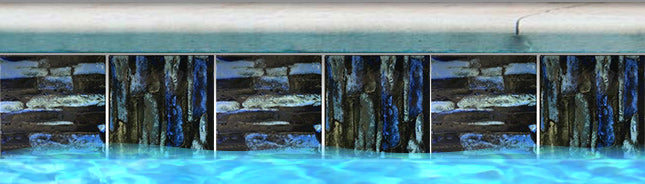

Swimming Pool Waterlines: The 6" x 6" format creates a dramatic, textured 6-inch or 12-inch waterline border that naturally masks water-level shifts and scum lines.
-
Spas & Raised Spillways: Adds natural ledge stone texture around hot tub perimeters, spillways, and garden water features that refract light under cascading water.
-
Retaining & Feature Walls: Provides weather-resistant trim for outdoor kitchen backsplashes, patio feature walls, and garden retaining walls.
Installation & Handling Guidelines
⚠️ IMPORTANT: POOL & WET-AREA INSTALLATION PROTOCOL
-
Submerged Mortar Selection: Install using a high-performance, polymer-modified thin-set mortar specifically rated for submerged porcelain tile and exterior freeze-thaw cycles (ANSI A118.4 or ANSI A118.15).
-
Waterproofing & Substrate: Ensure concrete pool shells, mud beds, or backer boards are fully cured, properly sloped, and sealed with an approved waterproof membrane prior to setting tile.
-
Grout Selection: Use a high-density, chemical-resistant pool-grade grout or epoxy grout formulated to withstand chlorine, salt water systems, and water treatment chemicals.
-
Dry Laying & Color Blending: Because high-relief stone-look porcelain tiles feature natural shade and surface variations, open multiple boxes and dry-lay tiles before setting to blend tones evenly.
Care & Maintenance
-
Pool Chemistry Balance: Maintain proper pool water chemistry (pH, alkalinity, and calcium hardness) to prevent mineral scale accumulation in textured surface crevices.
-
Routine Cleaning: Clean waterline scale using non-abrasive pool tile cleaners and soft nylon brushes. Avoid harsh wire brushes that could scratch or dull the glazed surface.
-
Zero Sealing Required: Unlike natural ledge stone, glazed vitrified porcelain is virtually non-porous and never requires topical sealers or impregnators.
Design Profile
-
Aesthetic Inspiration: Mountain Stream, Alpine Stone Resort, Natural Oasis Spa, Rustic Coastal Modernism.
-
Visual Advantage: The dimensional stone relief catches low-angle sunlight and moving water, giving pool perimeters a deep, crystalline mineral appearance.
-
Complementary Finishes: Flagstone or natural travertine pool coping, dark pebble plaster finishes (such as Tahoe Blue, Black Pearl, or French Gray), and copper water spouts.
Frequently Asked Questions
Is Stoneledge Azurite porcelain pool tile suitable for saltwater pools?
Yes. High-fired glazed vitrified porcelain is non-porous and highly resistant to salt, chlorine, and harsh pool water treatment chemicals.
Does this tile require sealing before or after installation?
No. Glazed porcelain has near-zero water absorption and does not require sealing. Only cementitious grout joints between tiles may benefit from periodic sealing.
Can Stoneledge Azurite tile be installed in freeze-thaw climates?
Yes. Vitrified porcelain pool tiles are frost-proof when installed using proper exterior-grade mortars, waterproof membranes, and pool-rated grouts per TCNA guidelines.
