Product Overview

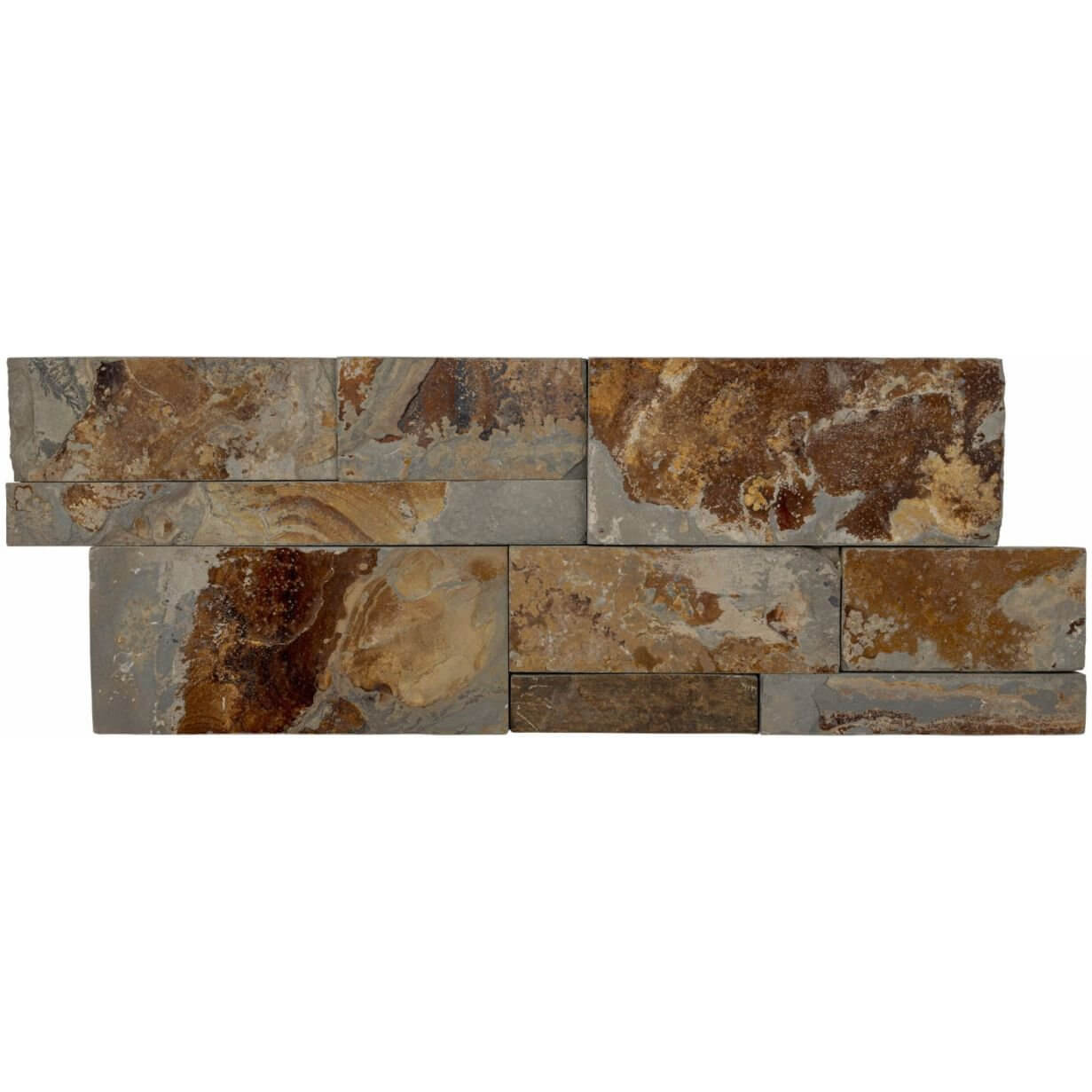

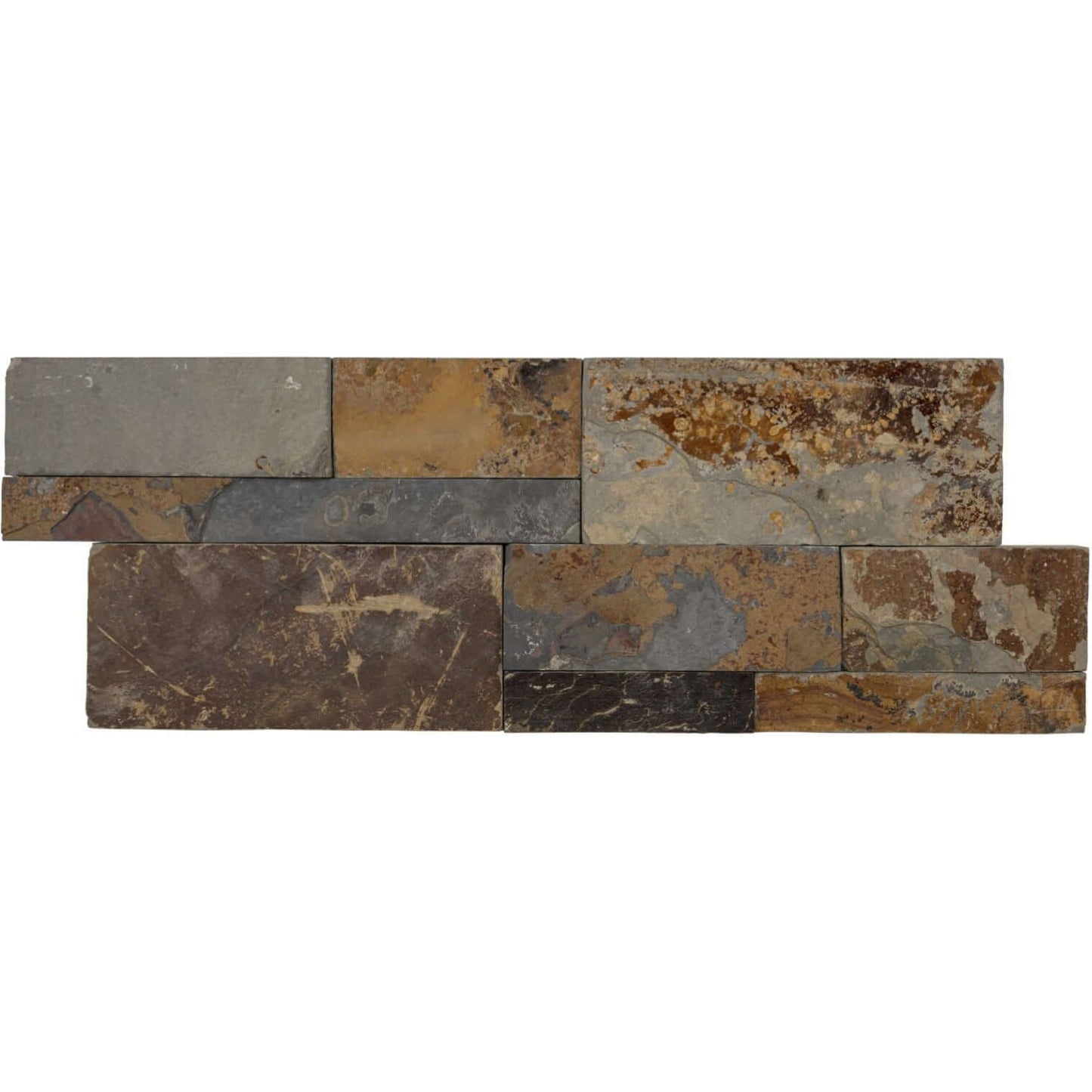

MSI XL RockMount™ California Gold 9" x 24" Splitface Slate Ledger Panel brings the layered texture and richly varied color of genuine natural slate to interior and exterior architectural surfaces. Each oversized panel combines narrow stone strips in an interlocking stacked-stone configuration, producing a substantial masonry appearance with fewer horizontal courses than conventional 6" ledger panels.

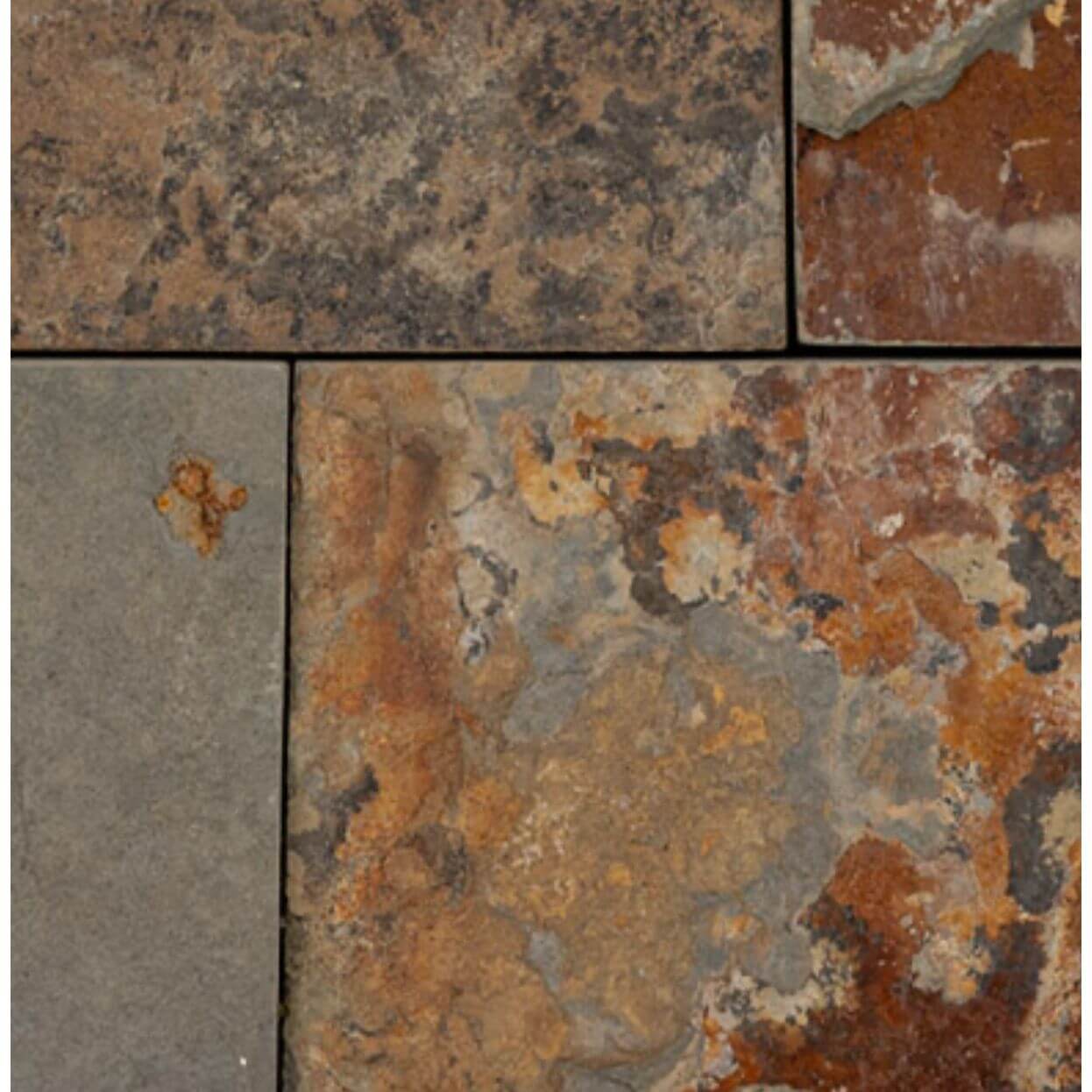

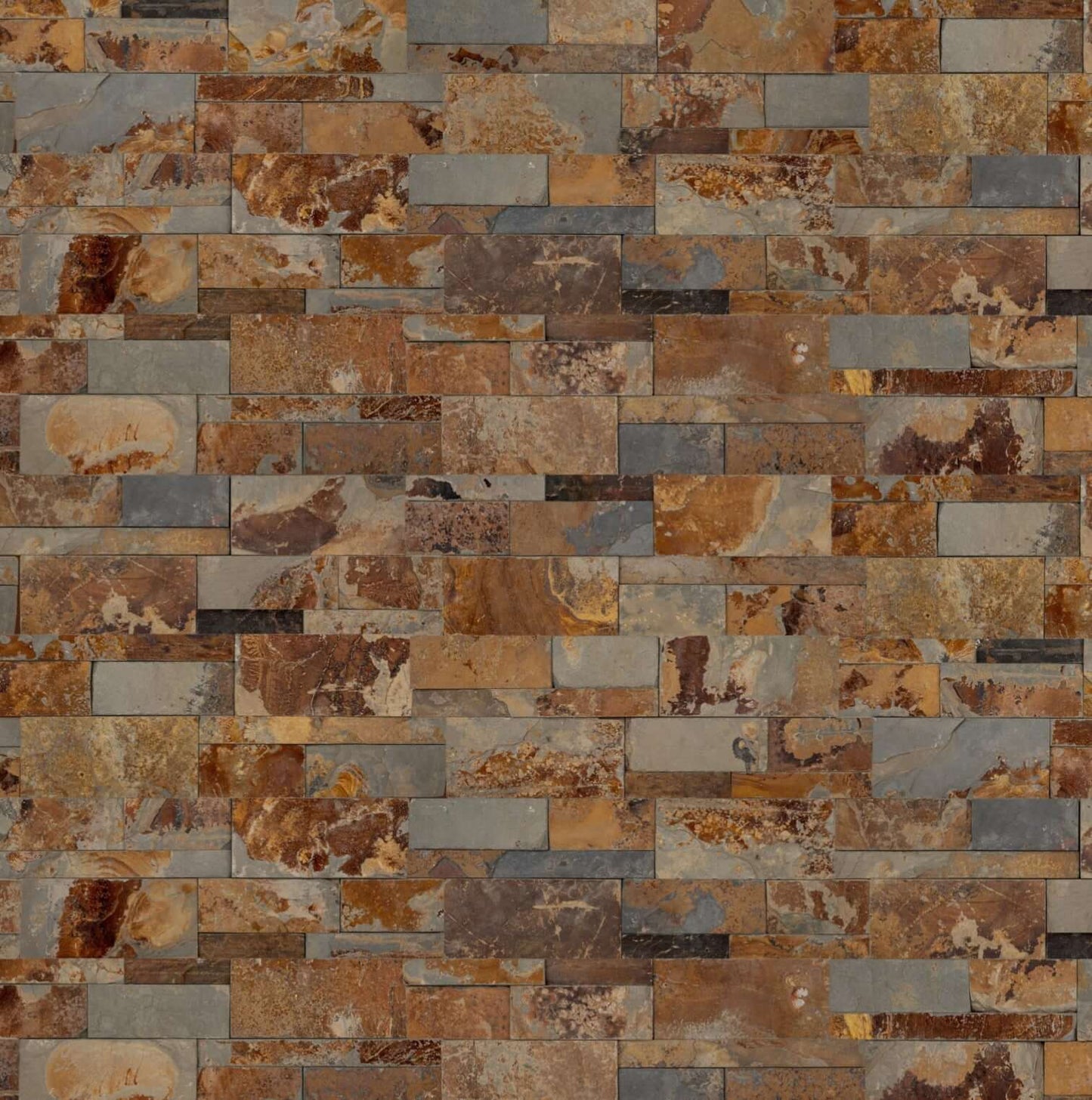

California Gold displays an earthy combination of golden brown, charcoal gray, copper, rust, olive, and occasional blue-green mineral tones. Its rugged splitface surface creates pronounced depth and natural shadow, making it an expressive choice for fireplaces, feature walls, exterior cladding, columns, outdoor kitchens, and landscape structures.

Technical Specifications

MSI confirms California Gold XL as a 9" x 24" splitface slate panel with a grout-free installation system and coordinating corner pieces. MSI Surfaces

Recommended Applications

• Fireplace Surrounds: Creates a dramatic natural-stone focal point when installed over an approved heat-resistant substrate and within required fireplace clearances.

• Interior Feature Walls: Adds rustic texture to living rooms, foyers, offices, restaurants, reception areas, and hospitality spaces.

• Exterior Cladding: Suitable for façades, architectural projections, entry walls, support columns, and approved veneer installations.

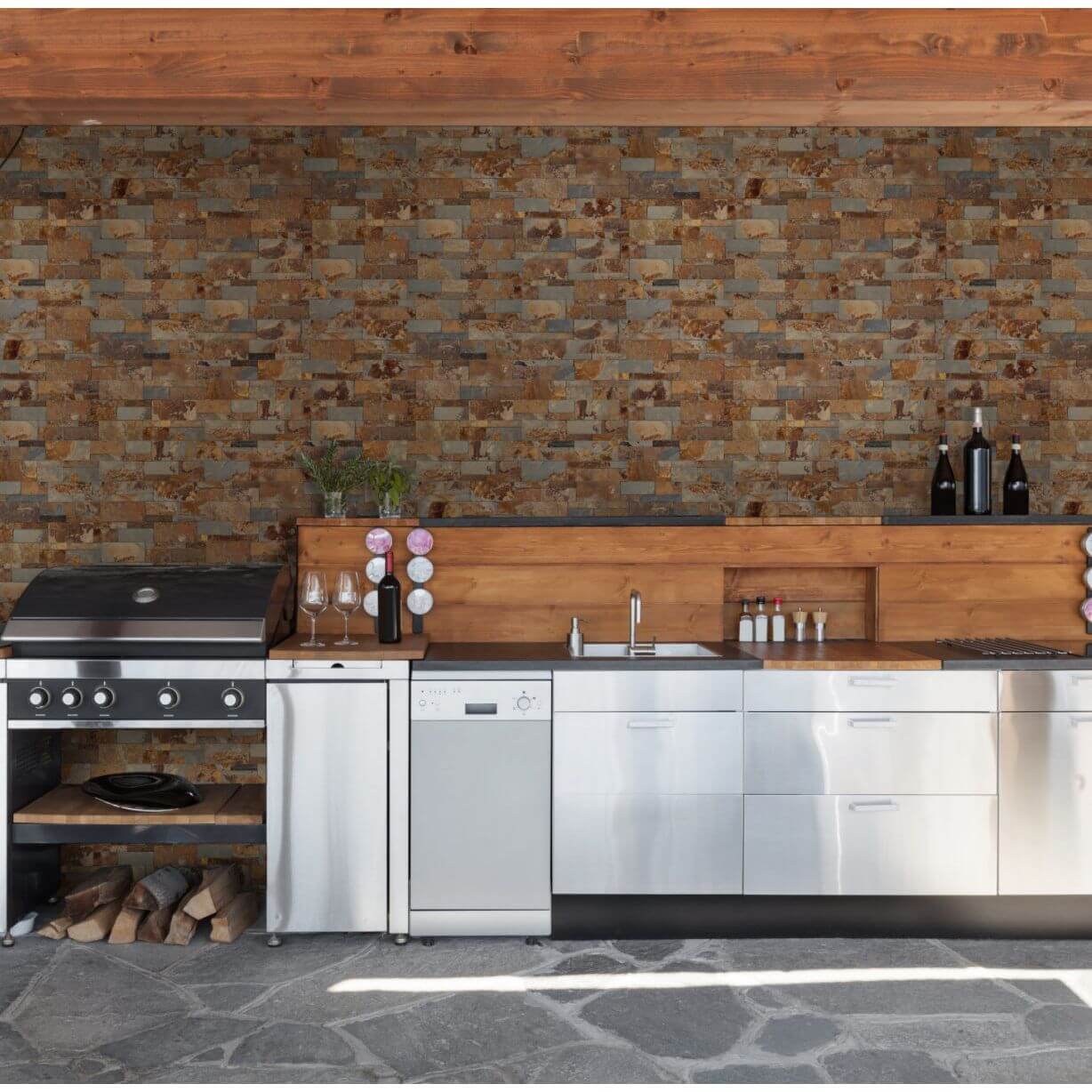

• Outdoor Kitchens: Provides a warm natural-stone finish around barbecue islands, bars, and entertainment structures.

• Columns and Pillars: Coordinates with matching California Gold corner panels for continuous stone wrapping around outside corners.

• Landscape and Planter Walls: May be used as decorative veneer over structurally sound masonry or concrete. The ledger panel is not a structural retaining-wall material.

Installation & Handling Guidelines

⚠️ IMPORTANT: HEAVY NATURAL-STONE WALL INSTALLATION

XL ledger panels are heavier and more dimensional than conventional wall tile. Confirm substrate strength, mortar suitability, waterproofing, flashing, and exterior support requirements before installation.

• Approved Substrate: Install over clean, flat, structurally sound concrete, masonry, or properly secured cementitious backer board.

• Mortar Selection: Use a polymer-modified Large and Heavy Tile mortar meeting ANSI A118.4 or A118.15 and approved for natural slate.

• Mortar Coverage: Directionally trowel the substrate and back-butter each panel. Exterior and moisture-exposed installations require substantially complete mortar coverage.

• Grout-Free Installation: Butt panels tightly together without conventional grout joints. Remove exposed mortar from the stone before it hardens.

• Stagger Panel Joints: Offset vertical joints between courses and avoid repeating obvious seams. Test-fit neighboring panels before applying mortar.

• Blend the Stone: Open several cartons and distribute gold, copper, gray, brown, and green-toned pieces throughout the installation.

• Corner Treatment: Use the coordinating California Gold 9" x 12" x 6" L-shaped corner panel, item number LPNLSCALGLD918COR, for outside corners and columns.

• Exterior Installation: Include appropriate waterproofing, flashing, drainage, movement accommodation, and freeze-thaw-rated setting materials.

• Fireplace Installation: Follow the fireplace manufacturer’s required clearances and local building codes. Natural slate does not make an improperly constructed assembly heat-safe.

• Cutting Safety: Wet-cut with a suitable diamond blade. Do not dry-cut or grind because fabrication produces hazardous respirable crystalline-silica dust.

• Order Allowance: Add approximately 10–15% for cuts, breakage, color blending, and future repairs.

Natural Slate Characteristics

California Gold is genuine natural slate. Differences in color, cleft texture, thickness, mineral deposits, and surface relief should be expected. Limited flaking or shedding may occur during handling and immediately after installation as loose surface particles separate from the natural cleft.

Dry-lay the panels before setting and distribute the colors throughout the wall. Natural variation should not be treated as a manufacturing defect.

Care & Maintenance

• Remove dust using a soft-bristle brush or vacuum attachment.

• Clean with warm water and a neutral-pH natural-stone cleaner.

• Avoid vinegar, acidic cleaners, bleach, abrasive chemicals, and wire brushes.

• Do not use high-pressure washing close to the stone or mortar joints.

• A penetrating natural-stone sealer may be considered for exterior, moisture-prone, grease-prone, or stain-prone areas.

• Test sealers first because enhancing products may deepen the gold, brown, and rust coloration.

• Inspect exterior installations periodically for open joints, failed flashing, or moisture intrusion.

Design Profile

• Aesthetic Inspiration: Rustic lodge, Tuscan, Mediterranean, Southwestern, Craftsman, and mountain-modern design.

• Color Character: Golden brown, charcoal gray, rusty copper, earthy green, and natural slate blue.

• Visual Advantage: The splitface relief catches directional light, emphasizing the layered construction and multicolor mineral character.

• Complementary Materials: Reclaimed wood, natural oak, dark walnut, blackened steel, concrete, and warm stucco.

• Complementary Metals: Aged bronze, copper, matte black, oil-rubbed bronze, and weathered iron.

• Lighting Recommendation: Grazing light from above or below intensifies the slate’s natural texture and color variation.

Frequently Asked Questions

Is California Gold slate or quartzite?

MSI identifies California Gold XL as genuine natural slate.

Does this ledger panel require grout?

No. MSI’s RockMount panels are designed for tight, grout-free installation.

How many panels are included in one carton?

One carton contains three 9" x 24" panels covering approximately 4.50 square feet.

Can California Gold be installed outdoors?

Yes. MSI recommends it for exterior wall applications when installed with appropriate waterproofing, flashing, drainage, mortar coverage, and movement accommodation.

Can it be installed around a fireplace?

Yes, when installed over an approved substrate and in compliance with the fireplace manufacturer’s clearance requirements and local codes.

Can it be used on floors?

No. The uneven splitface surface is designed for vertical wall and veneer installations rather than walking surfaces.

Are matching corner pieces available?

Yes. The coordinating L-shaped corner is item number LPNLSCALGLD918COR, with 12" and 6" returns and a 9" course height.

Does California Gold slate require sealing?

Sealing is optional in many dry interior wall installations but may be beneficial in exterior, moisture-prone, or grease-prone areas. Always test the sealer first.
